Component Inspection

■ Brake light switch Check

1. IG "OFF".
2. Disconnect the brake light switch connector.
3. Measure resistance between power terminal and signal terminal of the brake light switch connector.

   Specification:

   Resistance between terminals of the brake light switch - ∞Ω (when the plunger is pushed down), 0Ω (when the plunger isn't pushed down)

   Resistance between the terminals of the brake switch - ∞Ω (when the plunger is not pushed down), 0Ω (when the plunger is pushed down)

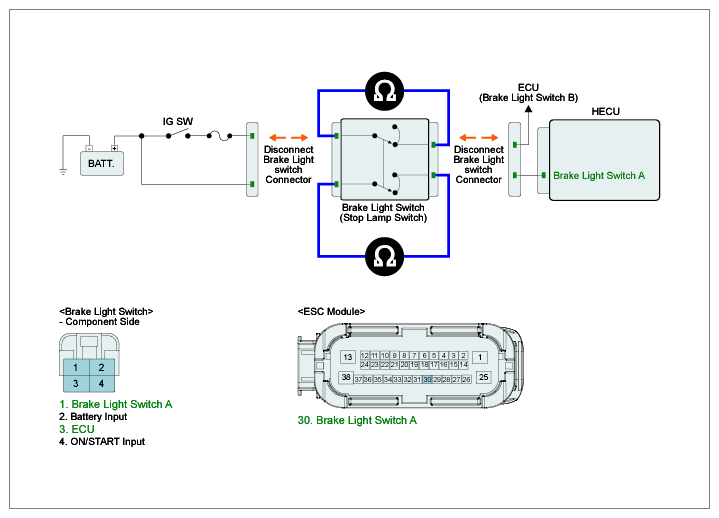

   Fig 1: Measuring Resistance Between Power Terminal And Signal Terminal Of Brake Light Switch Connector

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured value within specifications?

   YES

   • Fault is intermittent caused by poor connection in brake light switch harness and/or HECU's connector. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Substitute with a known-good brake light switch and check for proper operation. If problem is corrected, replace brake light switch and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
