Repair Procedures: Replacement

CAUTION:

Put on gloves to protect your hands.

NOTE:

Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the front seat assembly.
(Refer to "FRONT SEAT ASSEMBLY ")
Remove the front seat shield outer cover.
(Refer to "FRONT SEAT SHIELD OUTER COVER ")
Push the lock pin (B), remove the front seat headrest (A).

Fig 1: Pushing Lock Pin
Courtesy of HYUNDAI MOTOR AMERICA
Remove the front seat lower protector (A).

Fig 2: Removing Front Seat Lower Protector
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the front seat heater connector (A).

Fig 3: Disconnecting Front Seat Heater Connector
Courtesy of HYUNDAI MOTOR AMERICA

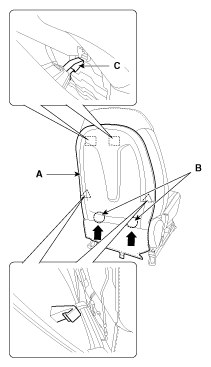

To disengage the lock pin (C), lift up the front seat back board (A) to the arrow direction with holding the bottom place (B).
NOTE:
- Be careful not to damage the lock pin.
Fig 4: Lifting Up Front Seat Back Board
Courtesy of HYUNDAI MOTOR AMERICA
Push the protector (A) by the front seat back frame.

Fig 5: Pushing Protector By Front Seat Back Frame
Courtesy of HYUNDAI MOTOR AMERICA
Remove the front seat side protector (A).

Fig 6: Removing Front Seat Side Protector
Courtesy of HYUNDAI MOTOR AMERICA
Pull out the headrest guides (A) while pinching the end of the guides, and remove them.

Fig 7: Pulling Out Headrest Guides
Courtesy of HYUNDAI MOTOR AMERICA
Remove the front seat back cover (A) from the front seat frame.

Fig 8: Removing Front Seat Back Cover From Front Seat Frame
Courtesy of HYUNDAI MOTOR AMERICA
After removing the velcro tape (B) on the front of seat back and remove the front seat back cover (A).

Fig 9: Removing Velcro Tape On Front Of Seat Back
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Replace any damaged clips.
- Make sure the connector is plugged in properly.
