Lighting System
>>
Components And Components Location
>>
Component Location
Component Location

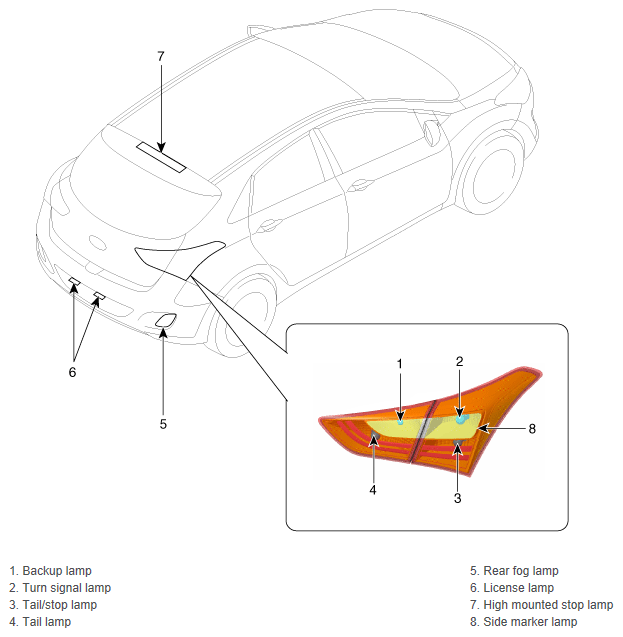

Fig 1: Lighting System Components (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

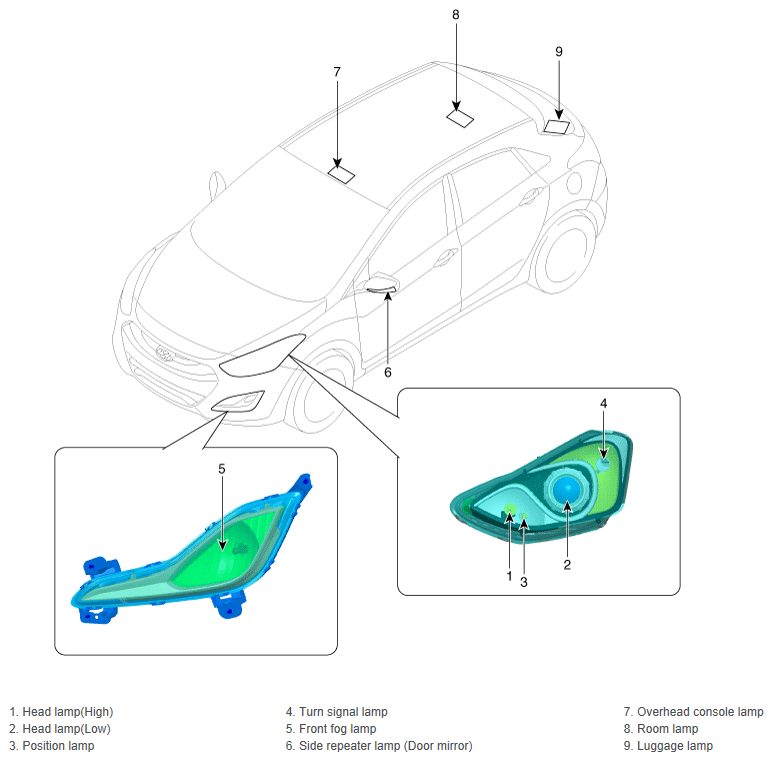

Fig 2: Lighting System Components (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
