Chart 4

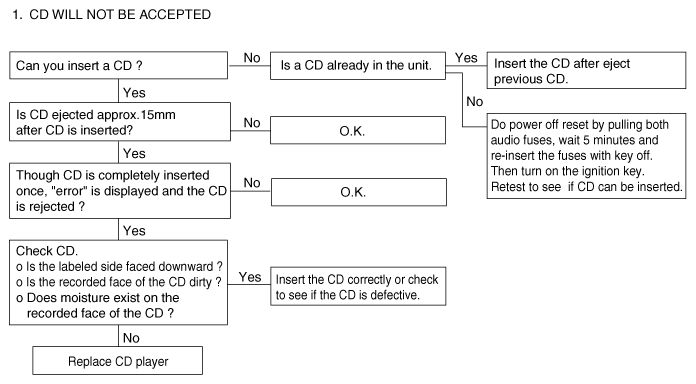

Fig 1: CD Player Troubleshooting Chart 4 (1 Of 4)
G12076473Courtesy of HYUNDAI MOTOR AMERICA

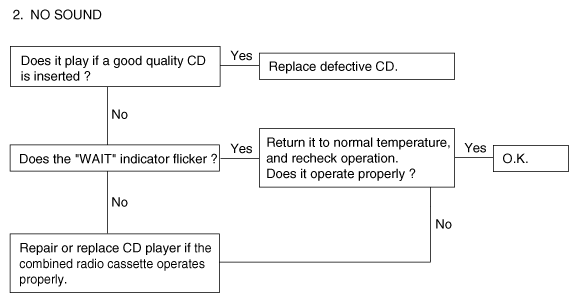

Fig 2: CD Player Troubleshooting Chart 4 (2 Of 4)
G12076474Courtesy of HYUNDAI MOTOR AMERICA

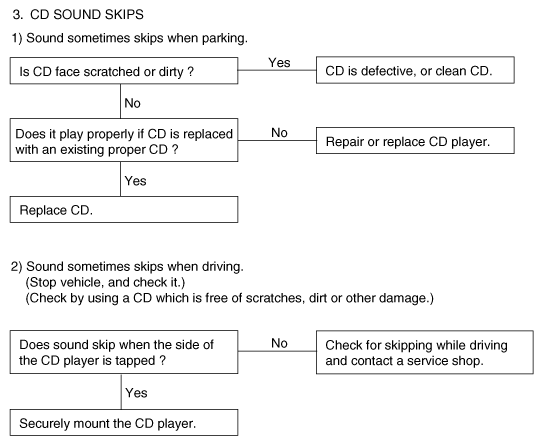

Fig 3: CD Player Troubleshooting Chart 4 (3 Of 4)
G12076475Courtesy of HYUNDAI MOTOR AMERICA

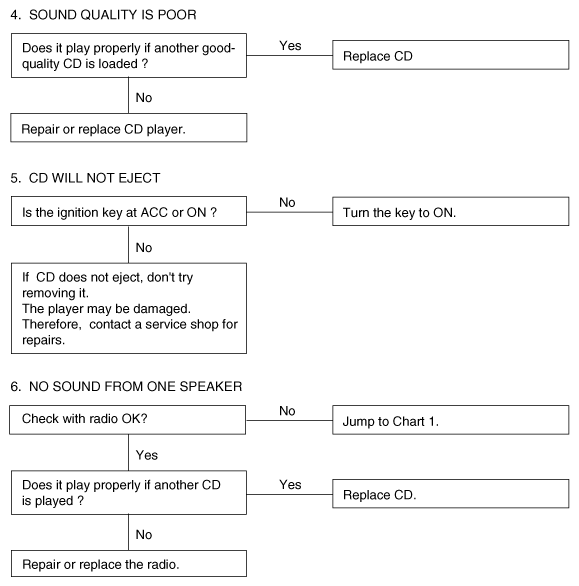

Fig 4: CD Player Troubleshooting Chart 4 (4 Of 4)
G12076476Courtesy of HYUNDAI MOTOR AMERICA
