Audio System
>>
Troubleshooting
>>
Chart 1
Chart 1

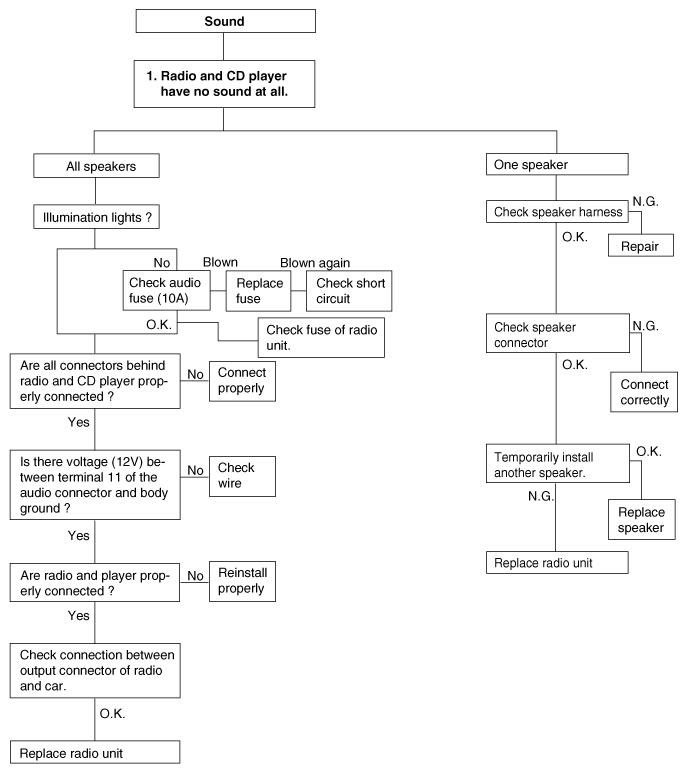

Fig 1: Sound Troubleshooting Chart 1 (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

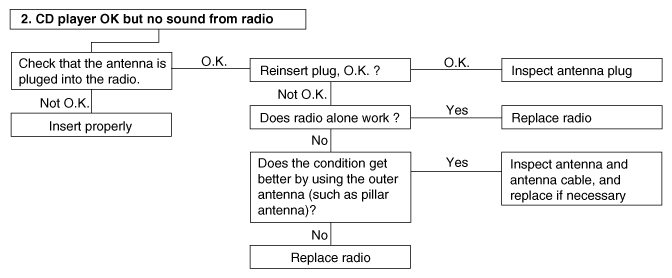

Fig 2: Sound Troubleshooting Chart 1 (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
