Transmitter Code Registration (Using GDS)

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Locating Data Link Connector
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "CODE SAVING"

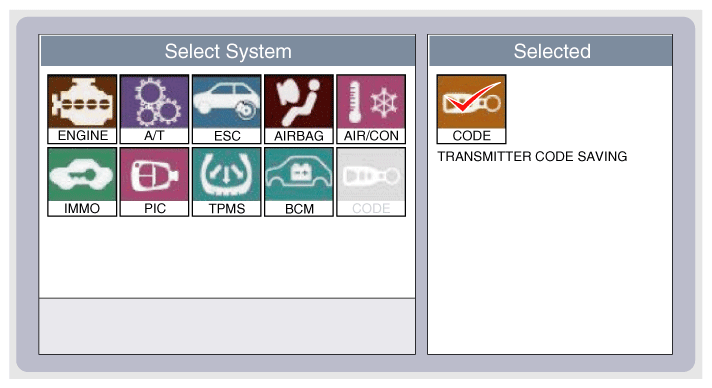

Fig 2: Screen Display - Vehicle Model And Code Saving
Courtesy of HYUNDAI MOTOR AMERICA

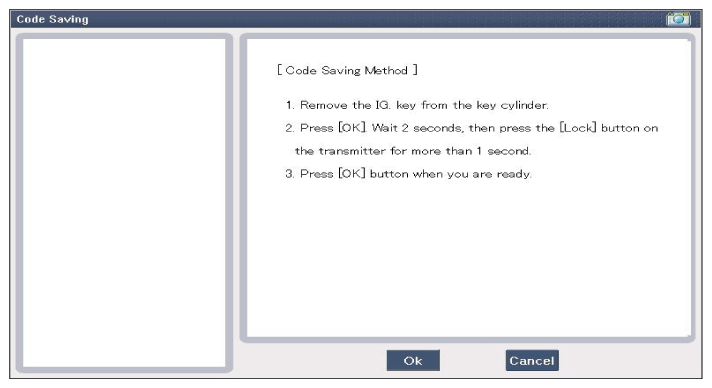

After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be as shown in the illustration below.

Fig 3: Screen Display - Code Saving Menu
Courtesy of HYUNDAI MOTOR AMERICA
After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 4 and then code saving is completed.

Fig 4: Screen Display - Code Saving (1 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: Screen Display - Code Saving (2 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

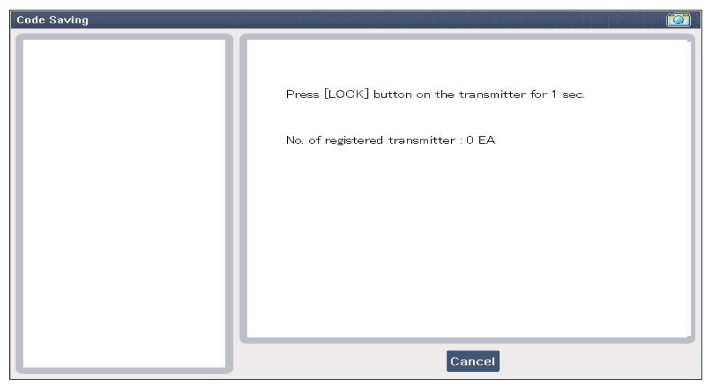

Fig 6: Screen Display - Code Saving (3 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

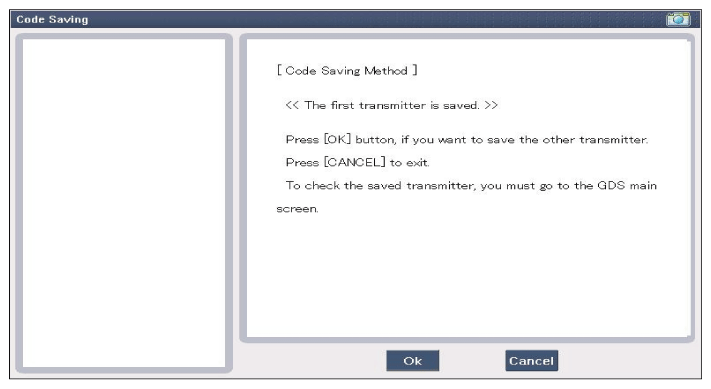

Fig 7: Screen Display - Code Saving (4 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

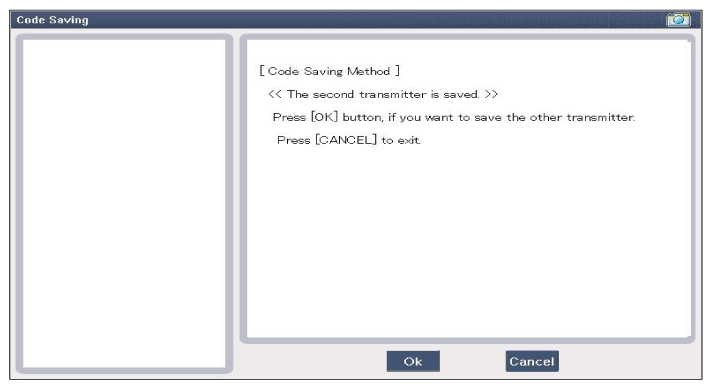

Fig 8: Screen Display - Code Saving (5 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

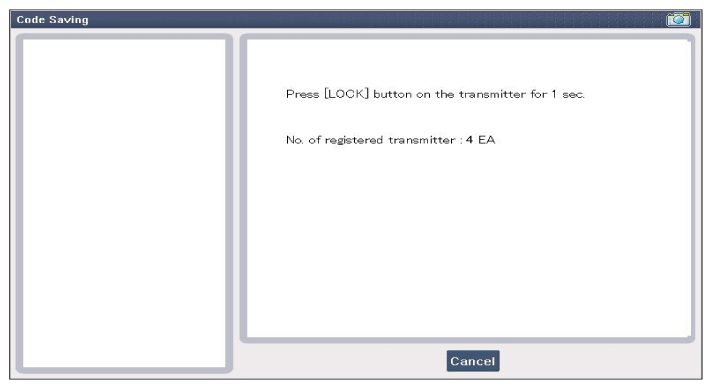

Fig 9: Screen Display - Code Saving (6 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

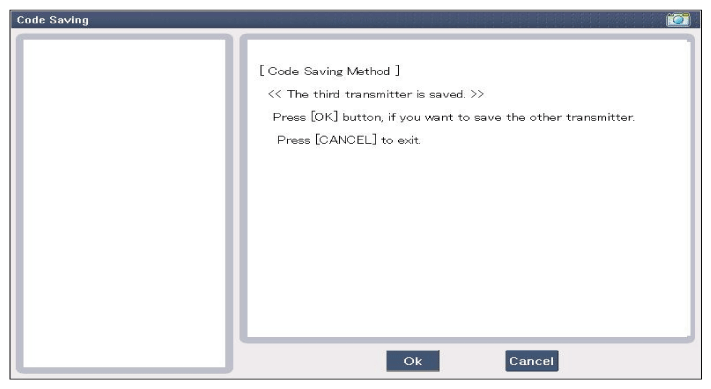

Fig 10: Screen Display - Code Saving (7 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

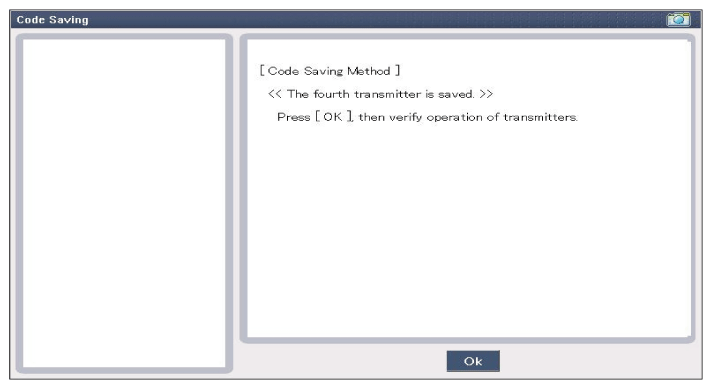

Fig 11: Screen Display - Code Saving (8 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 12: Screen Display - Code Saving (9 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA
