Component Location

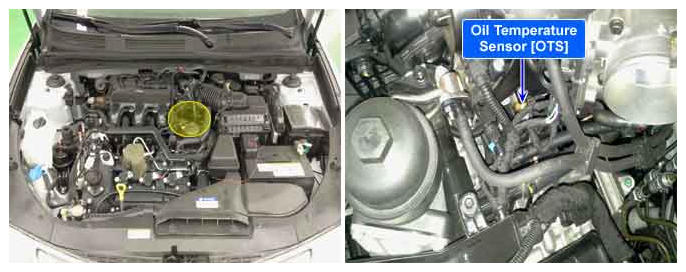

Fig 1: Engine Oil Temperature Sensor High Input Component
G12087783Courtesy of HYUNDAI MOTOR AMERICA
