Components And Components Location: Components

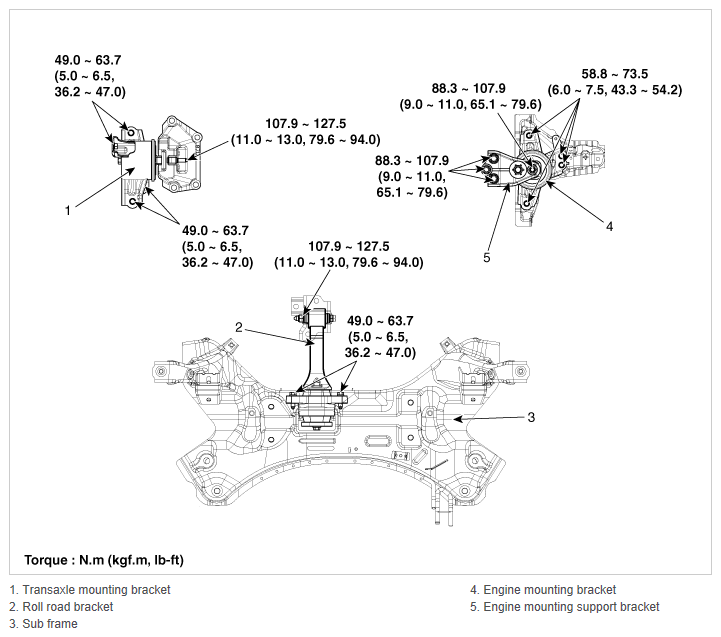

Fig 1: Engine Mounting Components With Torque Specification

G12086968

Courtesy of HYUNDAI MOTOR AMERICA
