Shift Cable Alignment Inspection

■ Check the Alignment of Shift Cable

1. Move TGS lever to "N" position. and unfasten Shift cable - Manual Control Lever nut and Transmission Range sensor 2 bolts.
2. Set Manual Control Lever in "N" position.

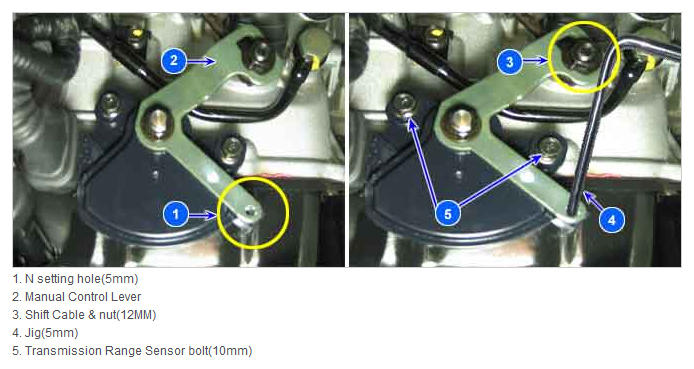

   Fig 1: Setting Manual Control Lever In N Position

   Courtesy of HYUNDAI MOTOR AMERICA
3. Insert "N setting Jig(5)" into the "N setting hole"
4. Fasten the Shift cable - Manual Control Lever nut and Transmission Range sensor 2 bolts.

   * Beware of pull or push between Shift Cable and Manual Control Lever.

5. Remove the Jig from "N setting hole"

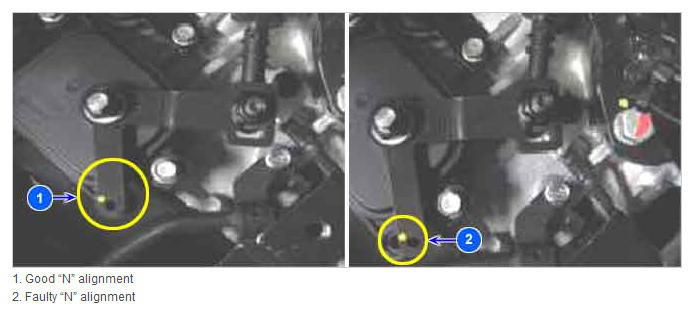

   Fig 2: Checking Alignment Of Shift Cable

   Courtesy of HYUNDAI MOTOR AMERICA
6. Is the problem solved?

   YES

   • Go to "Verification of Vehicle Repair " procedure.

   NO

   • Go to "WIRING INSPECTION " procedure.
