Home >> Hyundai >> 2017 >> Azera Base >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Blower System >> Blower Unit >> Components And Components Location >> Components

Components And Components Location: Components

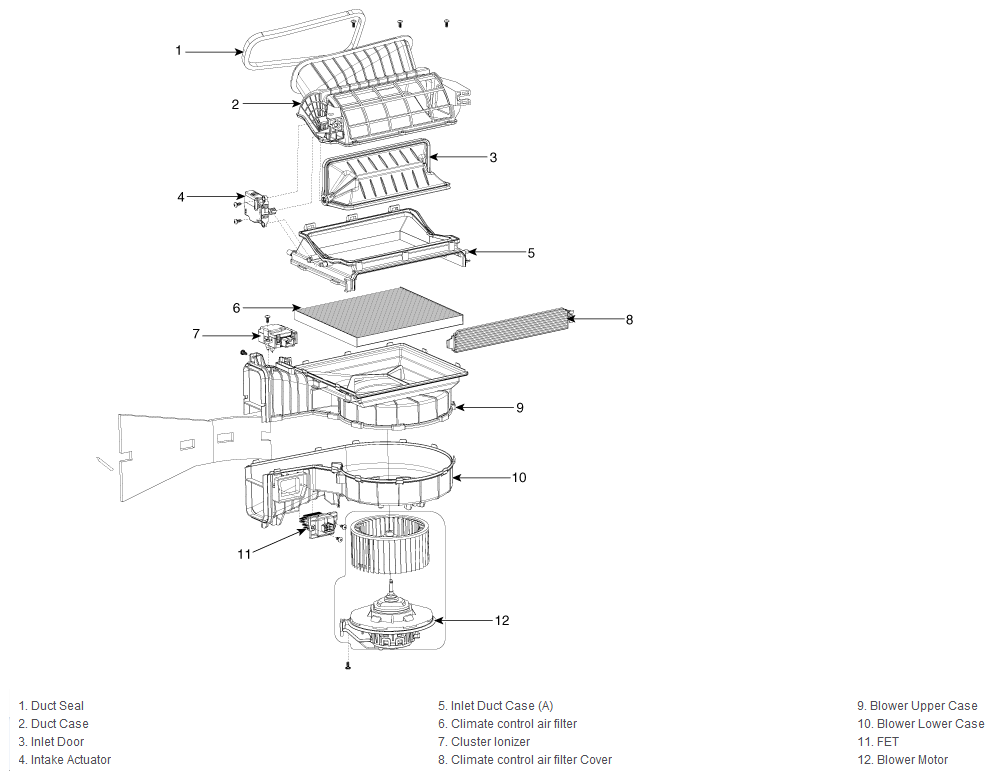

Fig 1: Blower Unit Components

G12093461

Courtesy of HYUNDAI MOTOR AMERICA
