Signal Circuit Inspection

■ Check short to battery in harness

1. IG "OFF" and disconnect FTPS connector and PCM connector.
2. Measure the resistance between signal and power terminals of FTPS harness connector.

   Specification:  Infinite

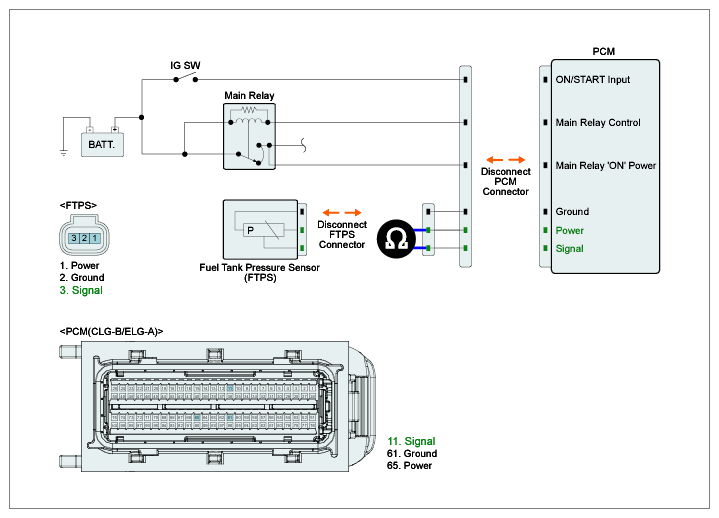

   Fig 1: Measuring Resistance Between Signal And Power Terminals Of FTPS Harness Connector

   Courtesy of HYUNDAI MOTOR AMERICA
3. Is the measured resistance within specification?

   YES

   • Go to "Component Inspection " procedure below.

   NO

   • Repair short to battery in harness, and go to "Verification of Vehicle Repair " procedure.
