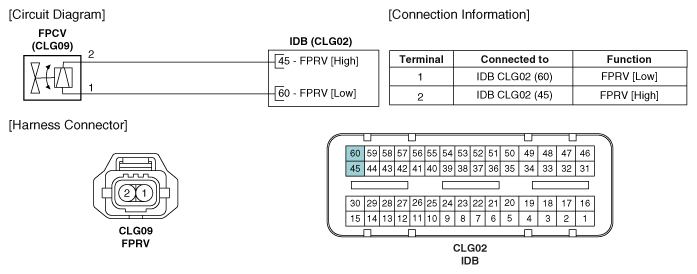

Home >> Hyundai >> 2017 >> Azera Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Fuel Pressure Control Valve (FPCV) >> Schematic Diagrams >> Circuit Diagram
