Home >> Hyundai >> 2017 >> Azera Base >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Cylinder Head Assembly >> Cylinder Head >> Components And Components Location >> Components

Components And Components Location: Components

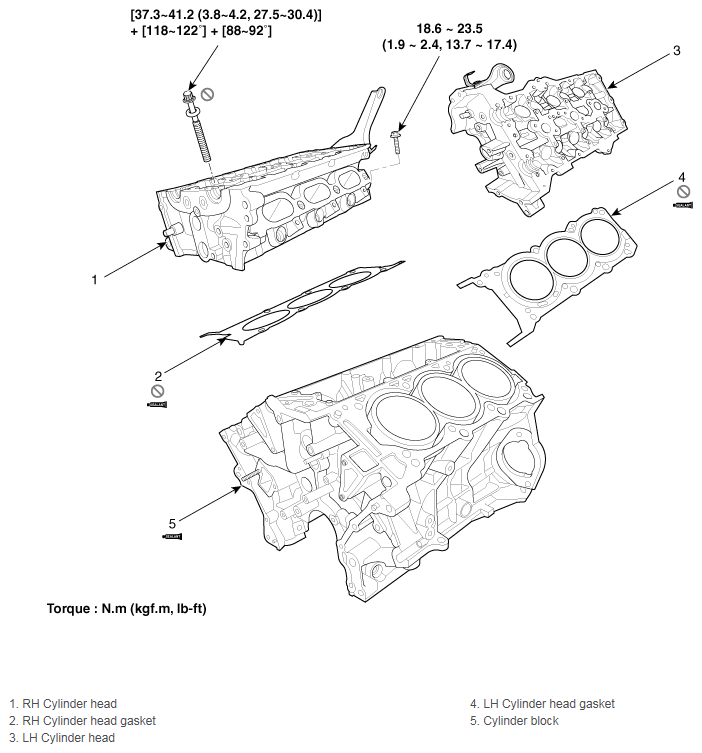

Fig 1: Cylinder Head Components With Torque Specification (1 Of 2)
G12089068Courtesy of HYUNDAI MOTOR AMERICA

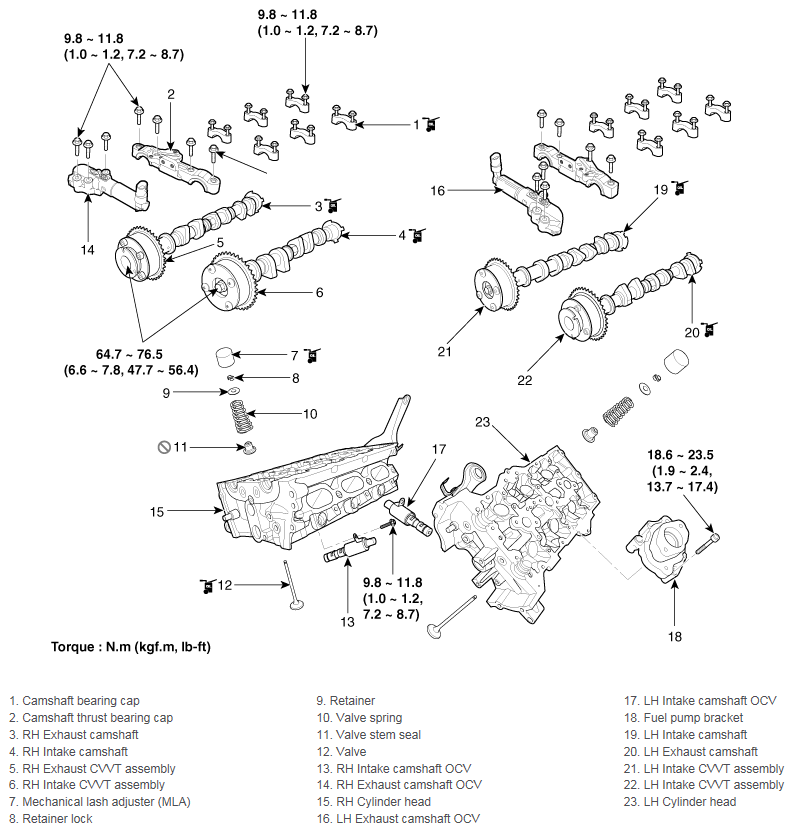

Fig 2: Cylinder Head Components With Torque Specification (2 Of 2)
G12089069Courtesy of HYUNDAI MOTOR AMERICA
