Components And Components Location: Components: [RH]

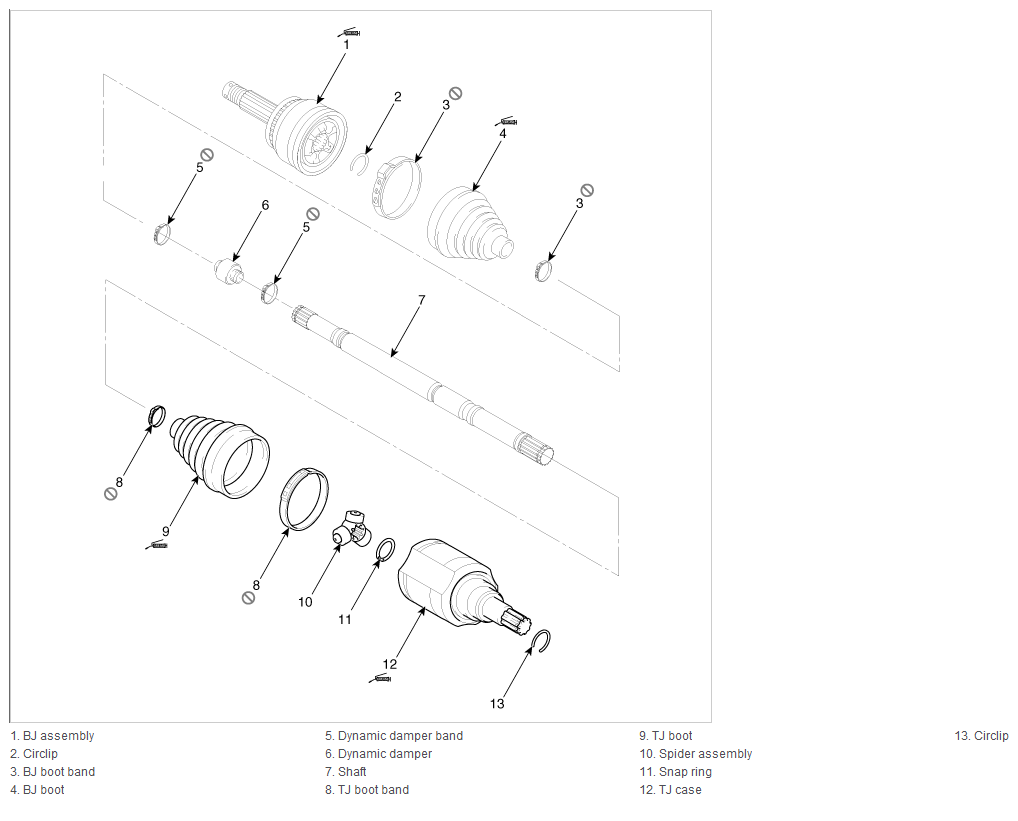

Fig 1: Exploded View Of TJ Joint Components (RH)

G12089260

Courtesy of HYUNDAI MOTOR AMERICA
