Components And Components Location: Components: [LH]

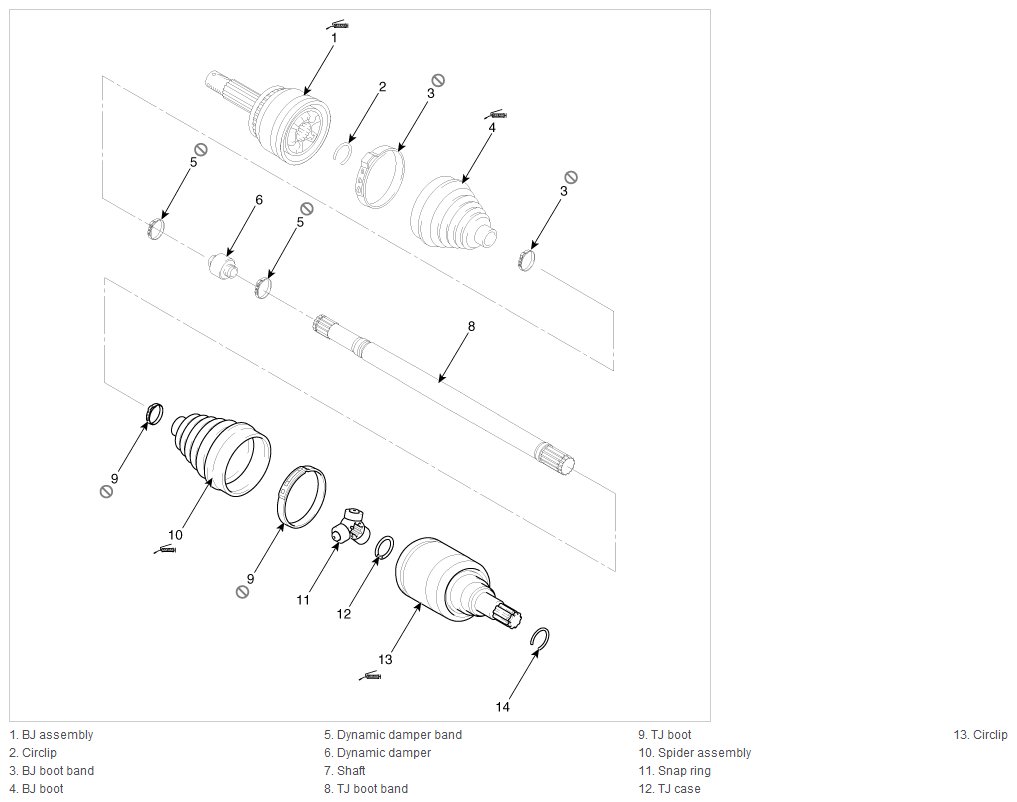

Fig 1: Exploded View Of TJ Joint Components (LH)

G12089259

Courtesy of HYUNDAI MOTOR AMERICA
