Components And Components Location: Components: [RH]

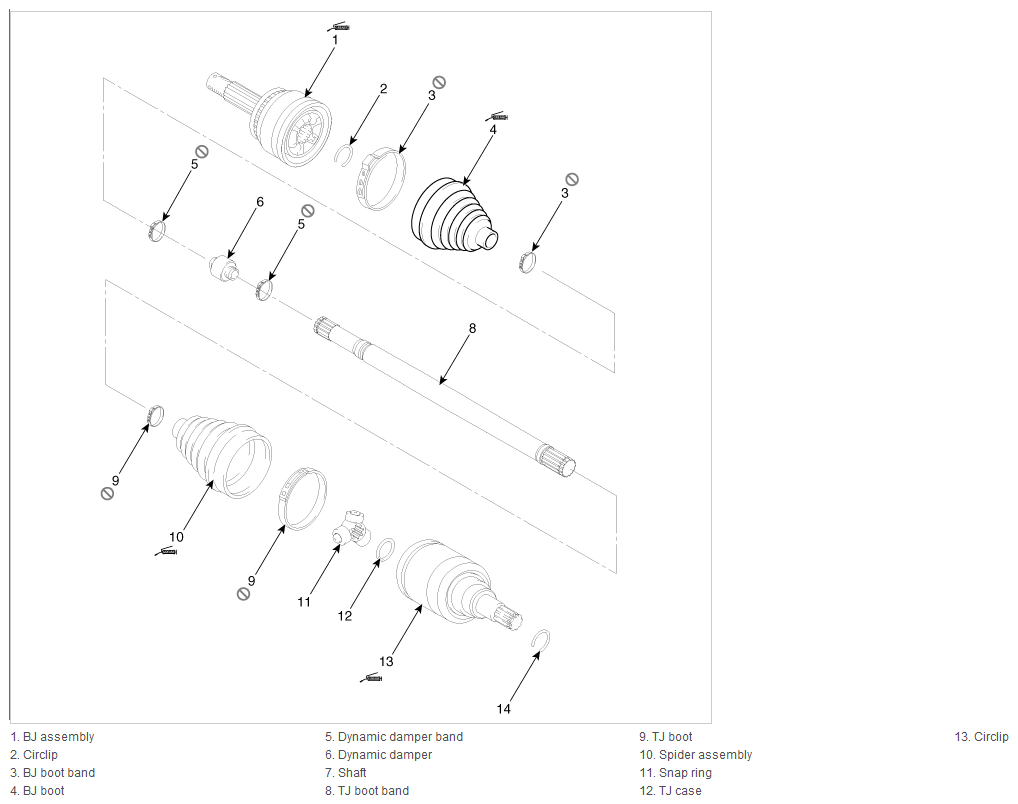

Fig 1: Exploded View Of BJ Boot Components (RH)

G12089279

Courtesy of HYUNDAI MOTOR AMERICA
