Components And Components Location: Components: [LH]

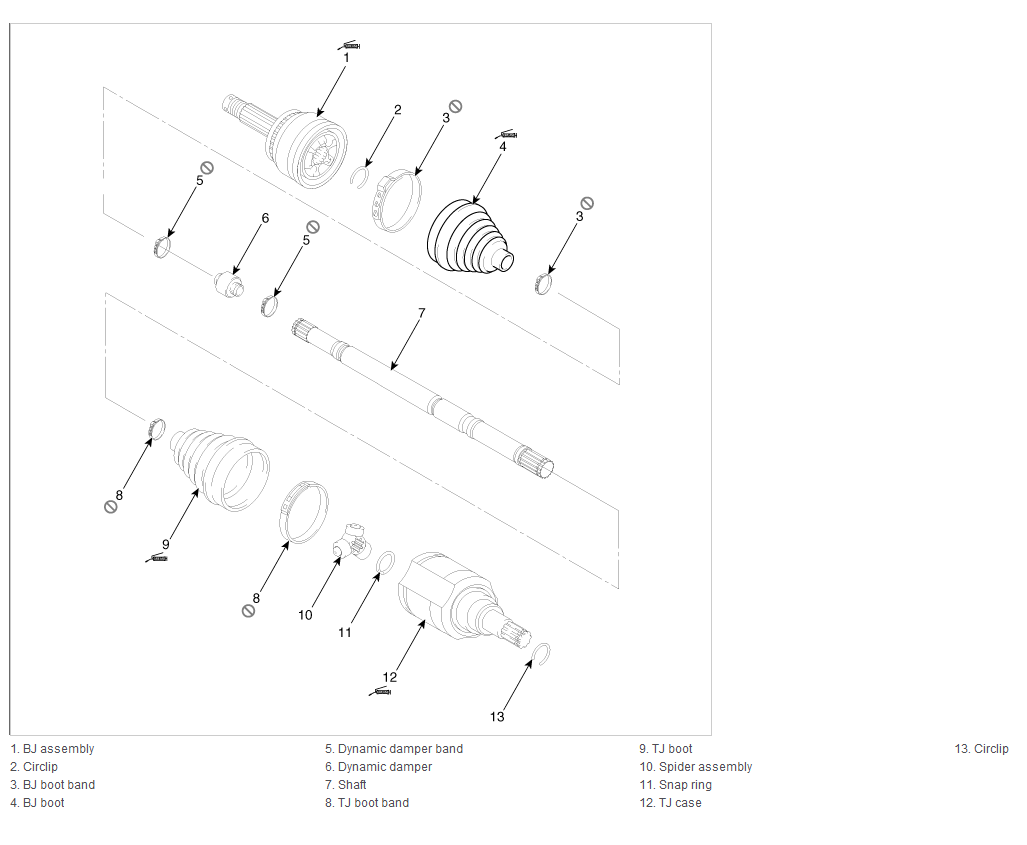

Fig 1: Exploded View Of BJ Boot Components (LH)

G12089278

Courtesy of HYUNDAI MOTOR AMERICA
