Power Circuit Inspection

■ Open or Short Check

1. Ignition "ON" & Engine "OFF".
2. Measure voltage between valve relay power terminal of the HECU harness connector and chassis ground.

   Specification:  Approx. B+

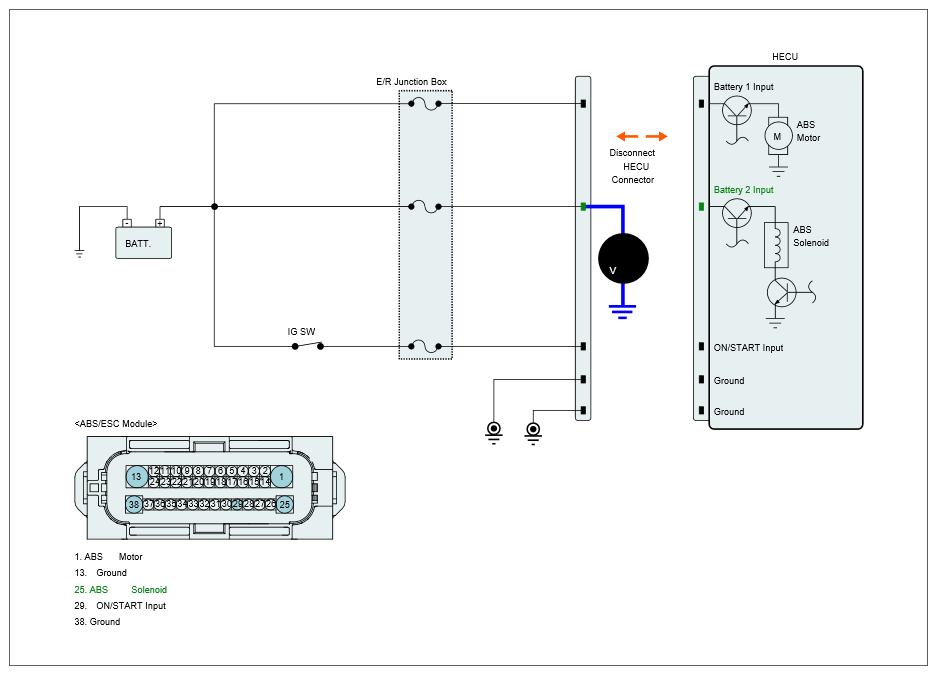

   Fig 1: Measuring Voltage Between Valve Relay Power Terminal Of HECU Harness Connector And Chassis Ground

   Courtesy of HYUNDAI MOTOR AMERICA
3. Is the measured value within specifications?

   YES

   • Go to "GROUND CIRCUIT INSPECTION " procedure.

   NO

   • Check for open or blown fuse referring to "Circuit Diagram".
   • Repair open or short in power circuit between battery and HECU harness connector and then, go to "Verification of Vehicle Repair " procedure.
