Repair Procedures: Replacement

CAUTION:

Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Put on gloves to protect your hands.

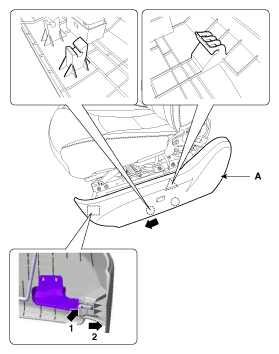

Using a screwdriver or remover, remove the front seat shield outer cover (A).

Fig 1: Removing Front Seat Shield Outer Cover
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A).

Fig 2: Locating Connector
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.
- Make sure the connector is plugged in properly.
