Body Repair

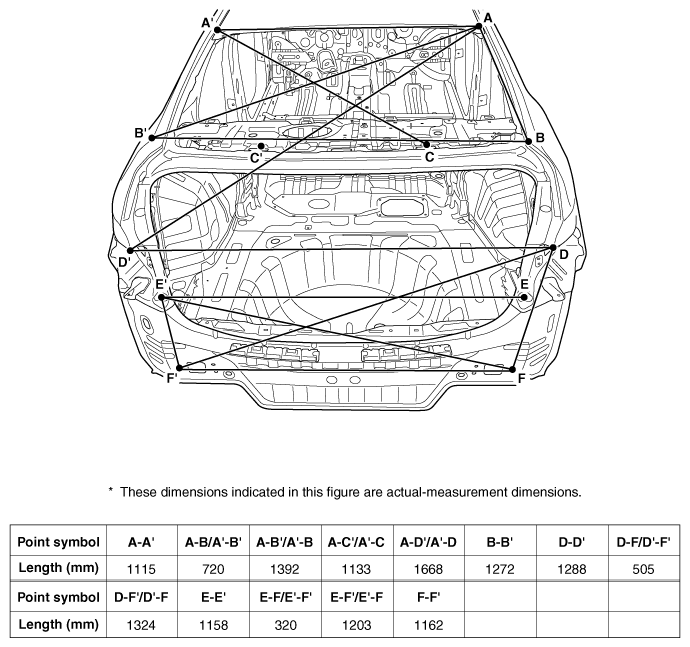

Fig 1: Rear Body Measurement Points

G12091219

Courtesy of HYUNDAI MOTOR AMERICA

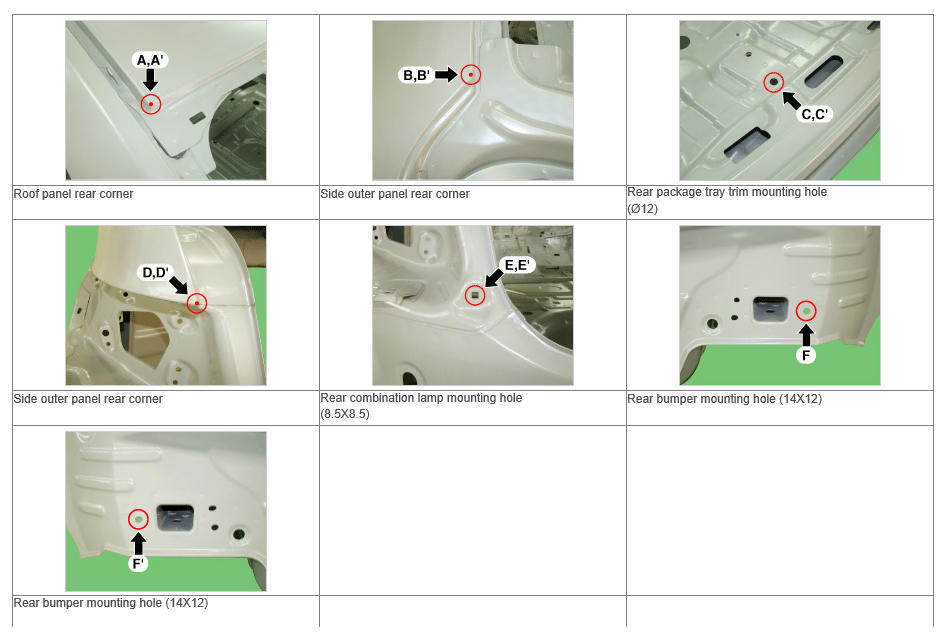

Fig 2: Locating Rear Body Mounting Holes

G12091220

Courtesy of HYUNDAI MOTOR AMERICA
