Interior C

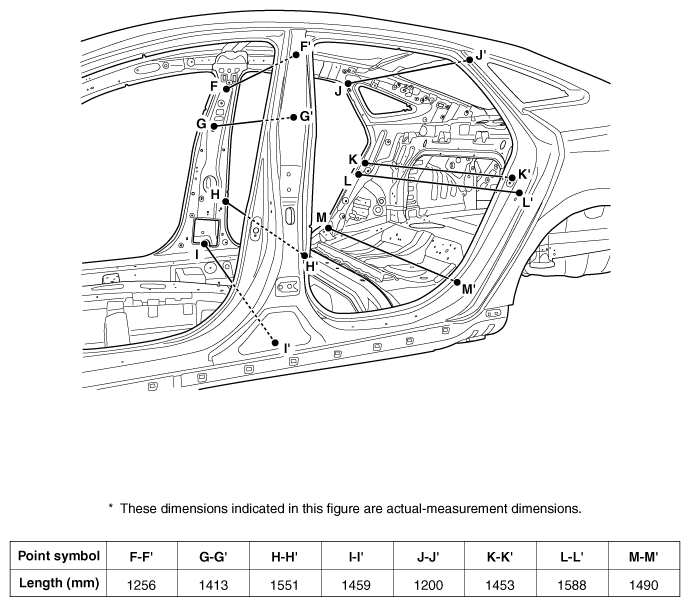

Fig 1: Interior C Measurement Points

G12091215

Courtesy of HYUNDAI MOTOR AMERICA

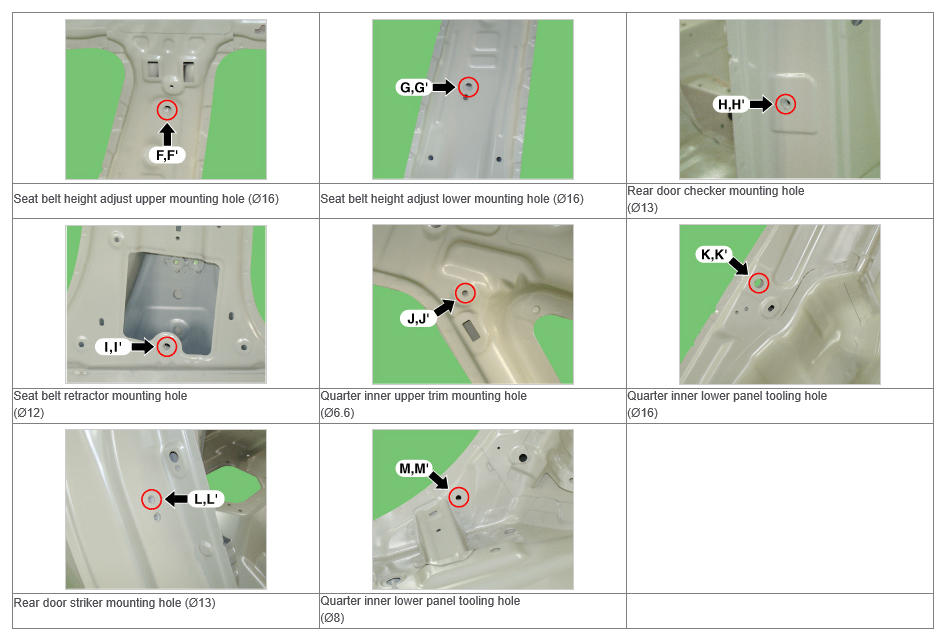

Fig 2: Locating Interior C Mounting Holes

G12091216

Courtesy of HYUNDAI MOTOR AMERICA
