Interior A

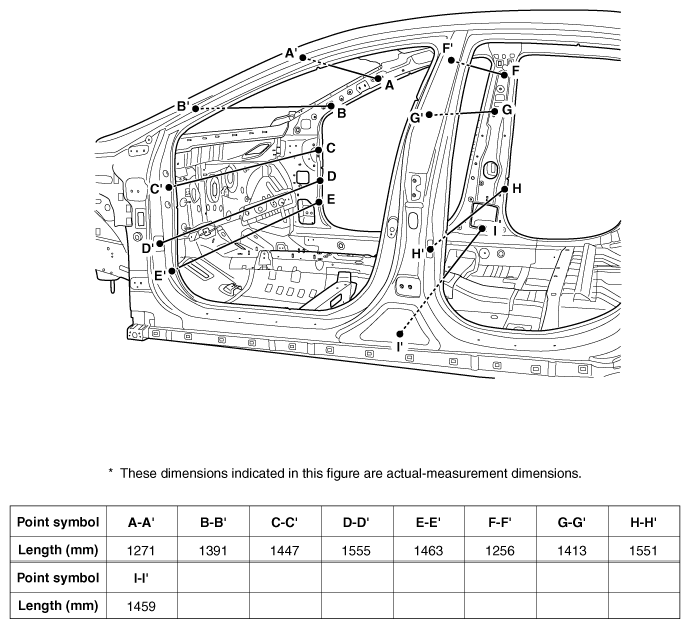

Fig 1: Interior A Measurement Points

G12091211

Courtesy of HYUNDAI MOTOR AMERICA

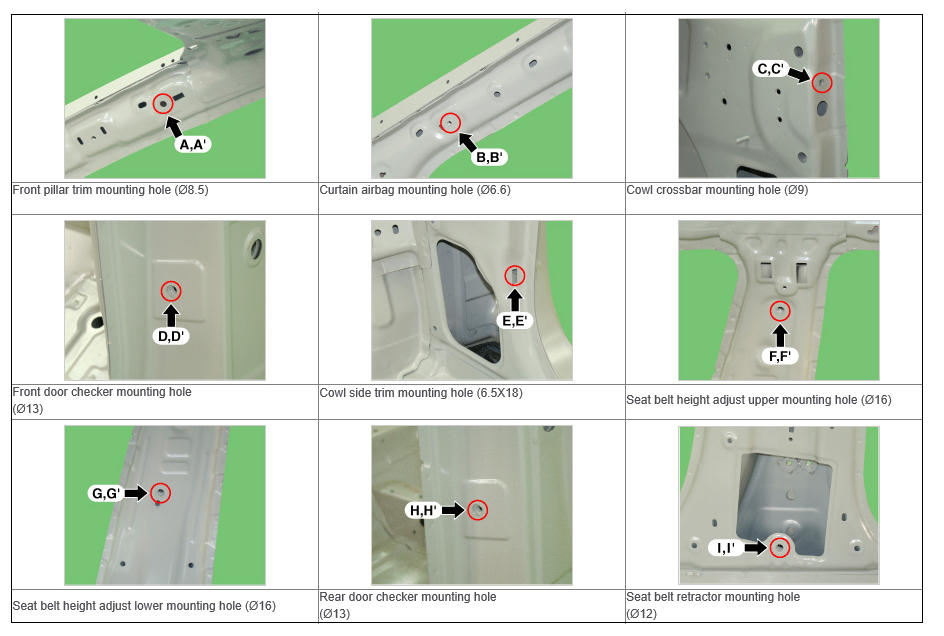

Fig 2: Locating Interior A Mounting Holes

G12091212

Courtesy of HYUNDAI MOTOR AMERICA
