Repair Procedures: Adjustment

  1. After loosening the trunk lid hinge (A) mounting bolt, adjust the trunk lid by moving it up or down, or right or left.
  2. Adjust the trunk lid height by turning the trunk lid overslam bumpers (B).
  3. After loosening the trunk lid striker (C) mounting bolts, adjust the trunk lid striker by moving it up or down, or right or left.

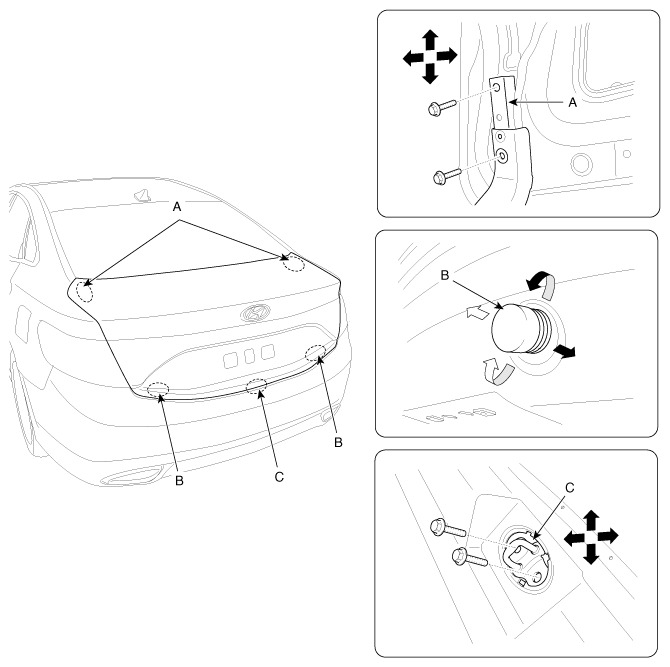

Fig 1: Adjusting Trunk Lid Striker
G12091249Courtesy of HYUNDAI MOTOR AMERICA
