Monitor Scantool Data

  1. IG KEY "ON" & Engine "OFF".
  2. Erase DTC after connecting GDS.
  3. Check Smart Key PCM status parameter if DTC is retrieved.

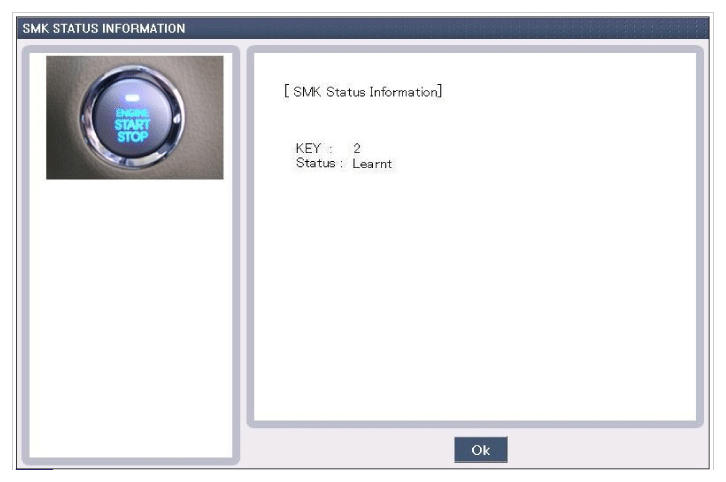

    Fig 1: Scantool Display - FOB Key Registered (Smart Key PCM Learnt Status)
    G12090649Courtesy of HYUNDAI MOTOR AMERICA
  4. Is the smart Key PCM learnt?

    YES

    • Fault is intermittent caused by poor contact in Smart key PCM and/or PCM's connector or was repaired and Smart key PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair " procedure.

    NO
