Repair Procedures: Inspection

  1. The rear glass defogger switch inputs can be checked using the GDS.
  2. To check the input value of rear glass defogger switch, select option "IPM".
  3. To consult the present input/output value of IPM, "Current DATA". It provides information of IPM input/output conditions of rear defogger relay.

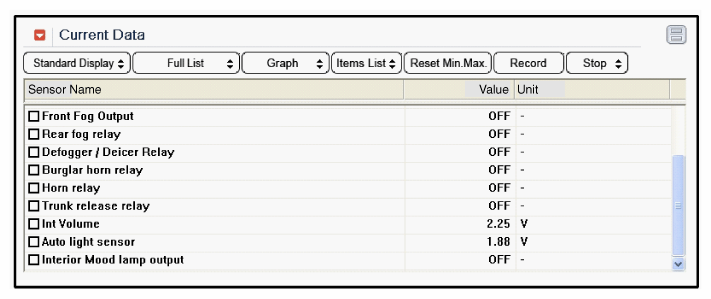

    Fig 1: Screen Display - Current Data
    G12093075Courtesy of HYUNDAI MOTOR AMERICA
  4. To check the input value of rear glass defogger switch in force mode, select option "Actuation Test".

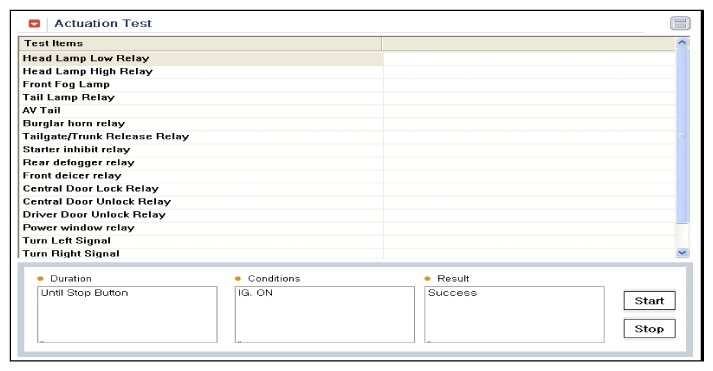

Fig 2: Screen Display - Actuation Test
G12093076Courtesy of HYUNDAI MOTOR AMERICA
