Components And Components Location: Components

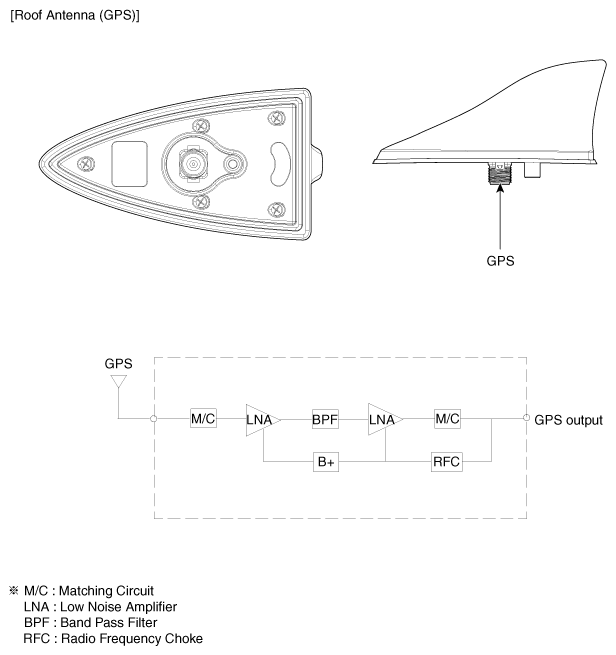

Fig 1: Roof Antenna Components

G12091686

Courtesy of HYUNDAI MOTOR AMERICA
