Signal Waveform & Data

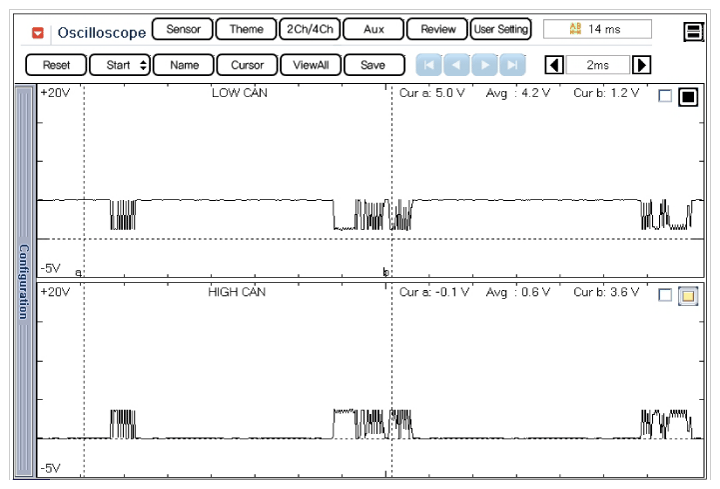

Fig 1: Scantool Display - CAN Low/High Signal Waveform
G12090668Courtesy of HYUNDAI MOTOR AMERICA

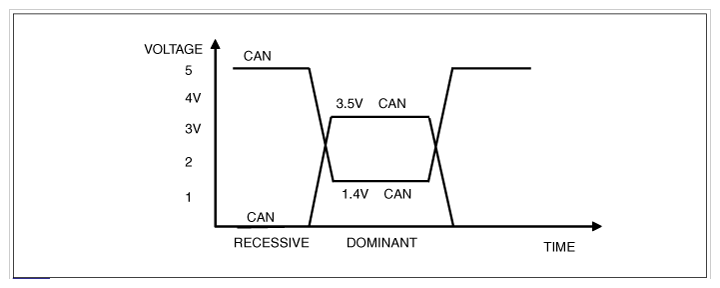

Fig 2: Scantool Display - CAN Bus Voltage Level (Low Speed CAN)
G12090669Courtesy of HYUNDAI MOTOR AMERICA
