Signal Circuit Inspection

■ Check short to battery in harness

1. IG "OFF" and disconnect APS connector and PCM connector.
2. Measure resistance between APS2 signal and APS1 power terminals of APS harness connector.
3. Measure resistance between APS2 signal and APS2 power terminals of APS harness connector.

   Specification:  Infinite

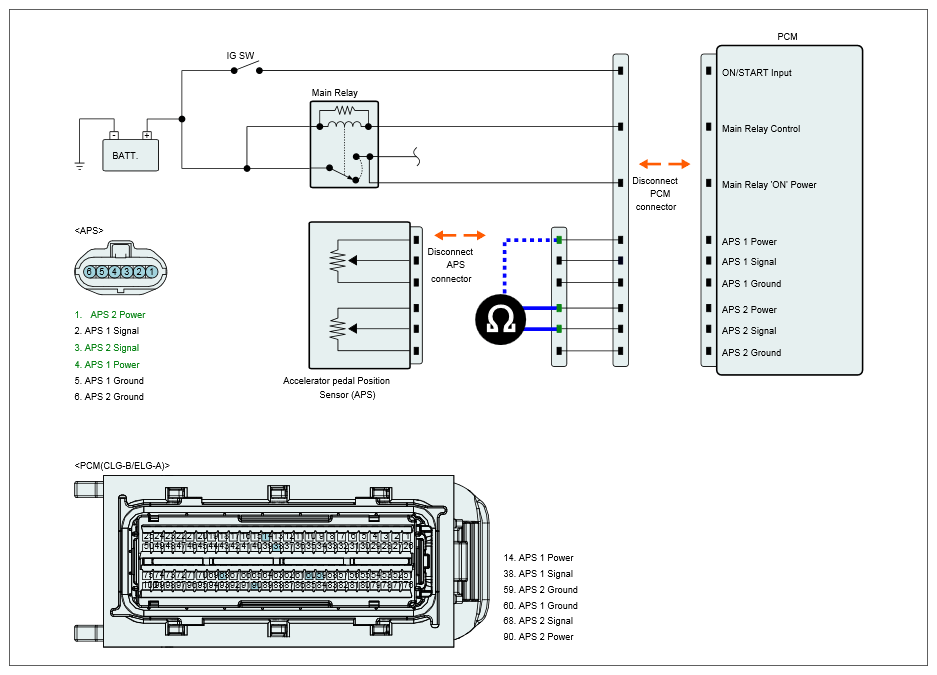

   Fig 1: Measuring Resistance Between APS2 Signal And APS2 Power Terminals Of APS Harness Connector

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured resistance within specification?

   YES

   • Go to "GROUND CIRCUIT INSPECTION " procedure below.

   NO

   • Repair short to battery in harness and go to "Verification of Vehicle Repair " procedure below.
