Signal Waveform & Data

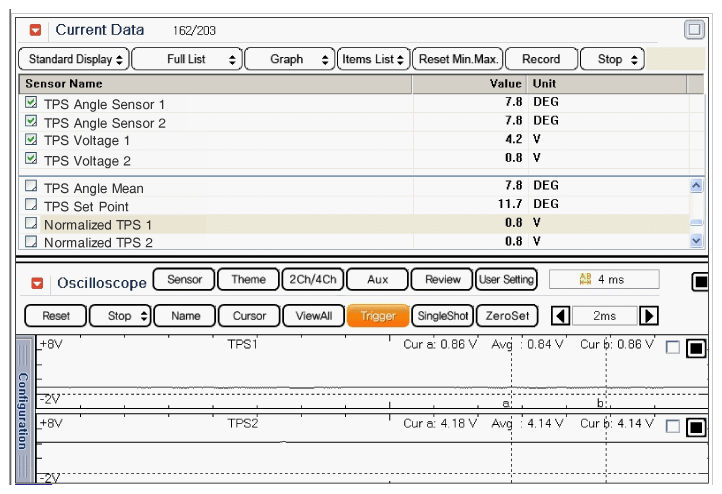

Fig 1: Screen Display - Normal Data And Waveform Of TPS1 & TPS2 With Depressing Accel. Pedal
G12087870Courtesy of HYUNDAI MOTOR AMERICA

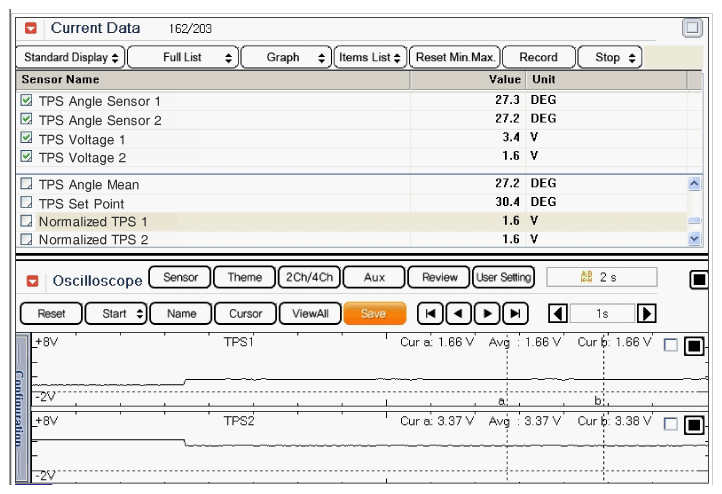

Fig 2: Screen Display - Normal Data And Waveform Of TPS1 & TPS2 With Pressing Accel. Pedal
G12087871Courtesy of HYUNDAI MOTOR AMERICA

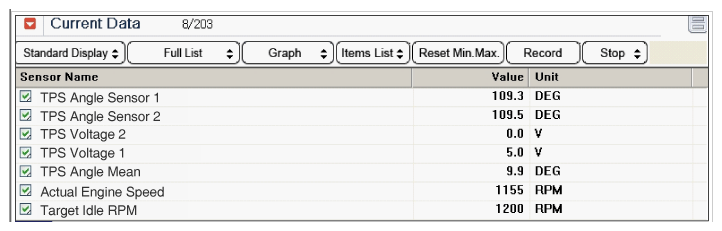

Fig 3: Screen Display - Abnormal Data Of TPS1 & TPS2 With Connector Disconnected Condition
G12087872Courtesy of HYUNDAI MOTOR AMERICA
