Ground Circuit Inspection

■ Check open in harness

1. IG "ON" and disconnect HO2S (B2/S2) connector.
2. Measure voltage between signal terminal of HO2S (B2/S2) harness connector and chassis ground.(Measurement "A")
3. Measure voltage between signal and ground terminals of HO2S (B2/S2) harness connector.(Measurement "B")

   Specification:  Voltage difference between measurement "A" and "B" is below 200mV.

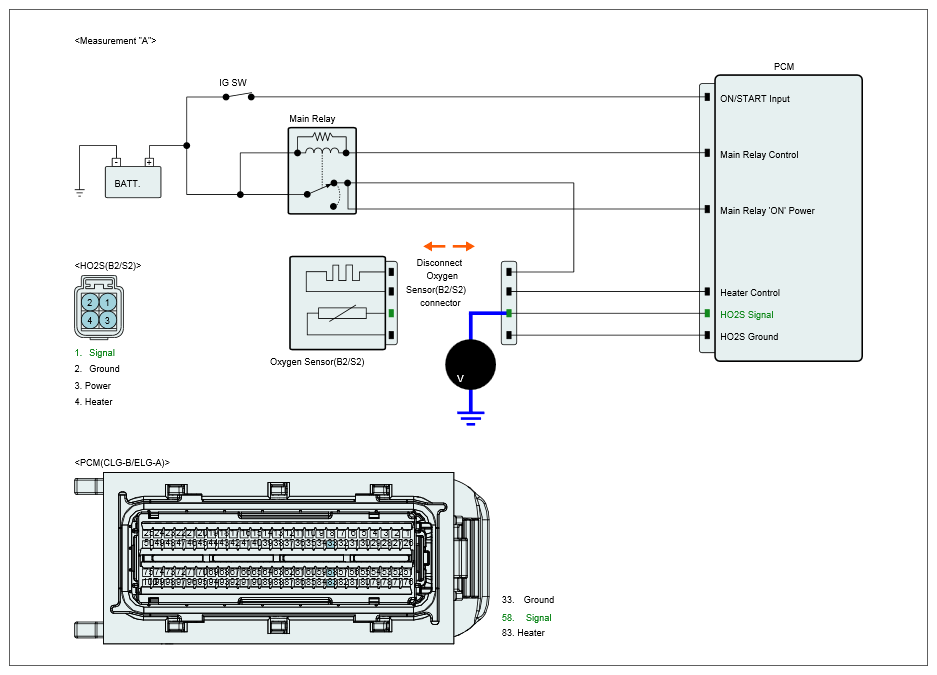

   Fig 1: Measuring Voltage Between Signal Terminal Of HO2S (B2/S2) Harness Connector And Chassis Ground (Measurement A)

   Courtesy of HYUNDAI MOTOR AMERICA

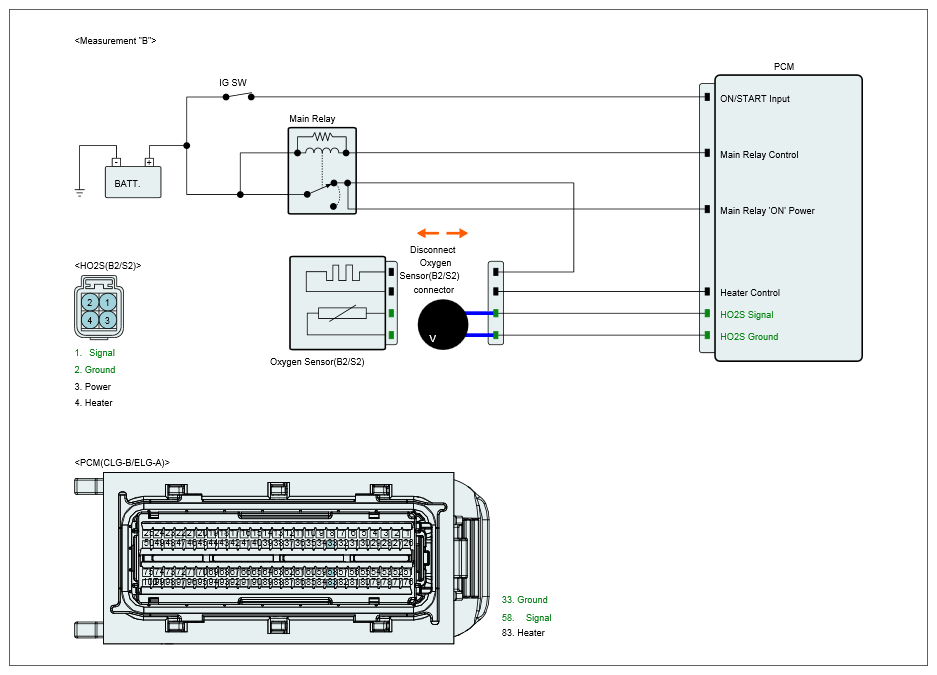

   Fig 2: Measuring Voltage Between Signal And Ground Terminals Of HO2S (B2/S2) Harness Connector (Measurement B)

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured voltage within specification?

   YES

   • Go to "Component Inspection " procedure.

   NO

   • Repair contact resistance or open in harness and go to "Verification of Vehicle Repair " procedure.
