Antenna Status Check

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
Select the "Antenna Status Check".

Fig 1: Scantool Display - ID Register And Inspection / Test
Courtesy of HYUNDAI MOTOR AMERICA
After IG ON, select the "Antenna Status Check".

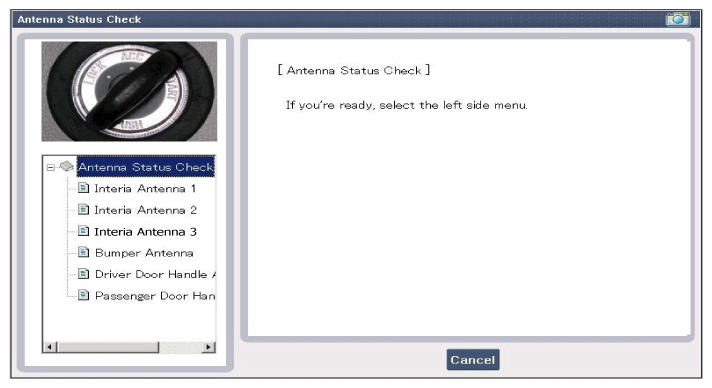

Fig 2: Scantool Display - Antenna Status Check
Courtesy of HYUNDAI MOTOR AMERICA
Set the smart key n ear the related antenna and operate it with a GDS.

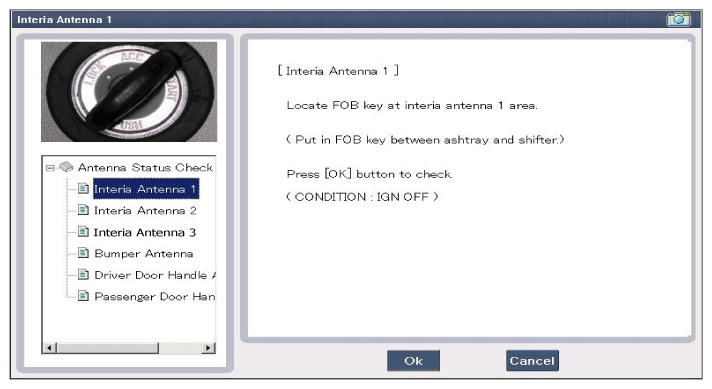

Fig 3: Scantool Display - Interia Antenna 1
Courtesy of HYUNDAI MOTOR AMERICA

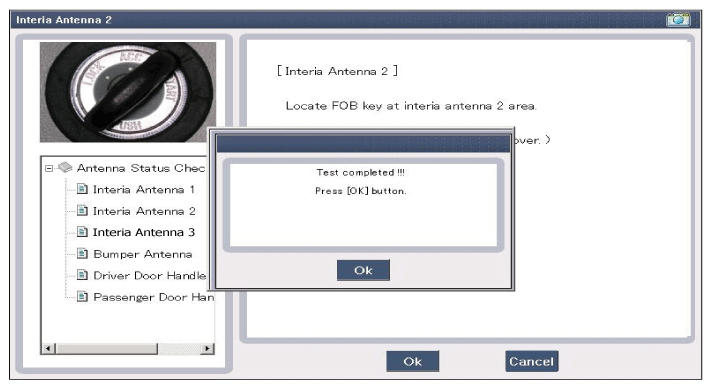

Fig 4: Scantool Display - Interia Antenna 1 (Test Completed)
Courtesy of HYUNDAI MOTOR AMERICA
If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
Antenna status
- INTERIOR Antenna 1
- INTERIOR Antenna 2
- INTERIOR Antenna 3
- BUMPER/Trunk Antenna
- DRV_DR Antenna
- AST_DR Antenna
