Circuit Diagram: M/T

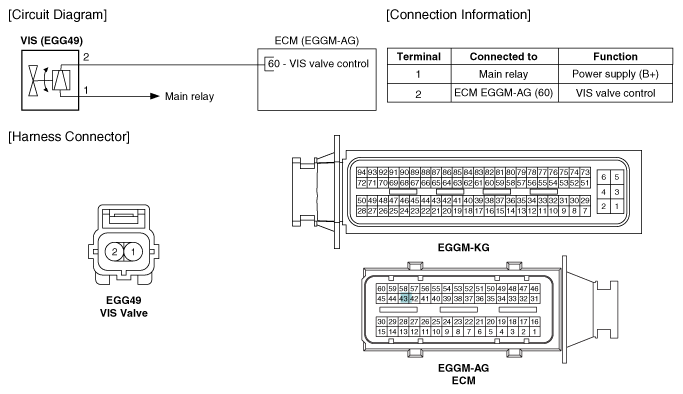

Fig 1: Variable Intake Manifold Solenoid Valve Diagram (M/T)

G12016458

Courtesy of HYUNDAI MOTOR AMERICA
