Home >> Hyundai >> 2017 >> Accent SE, 4D Hatchback, Automatic Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hydraulic System >> Valve Body >> Components And Components Location >> Components Location >> Notes

Components Location: Notes

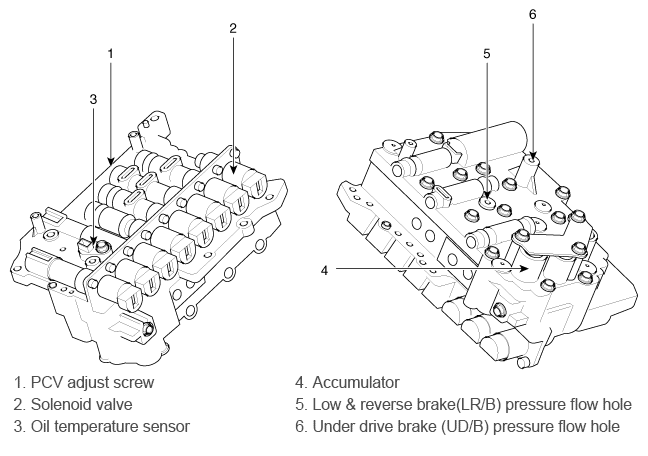

G12018997Courtesy of HYUNDAI MOTOR AMERICA
