Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

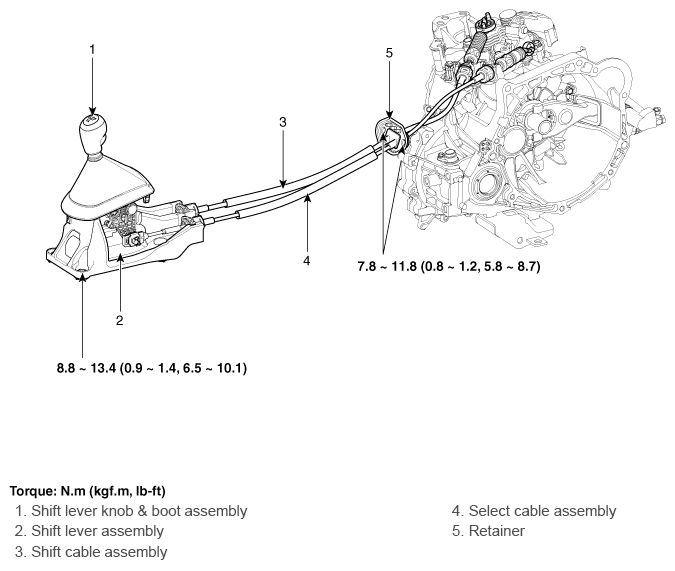

Fig 1: Shift Lever Components Location With Torque Specification
G12018939Courtesy of HYUNDAI MOTOR AMERICA
