Home >> Hyundai >> 2016 >> Veloster Turbo, Automatic DCT Trans >> Repair and Diagnosis >> Brakes >> Traction Control >> Electronic Stability Control (ESC) System >> Rear Wheel Speed Sensor >> Components and Components Location >> Components

Components and Components Location: Components

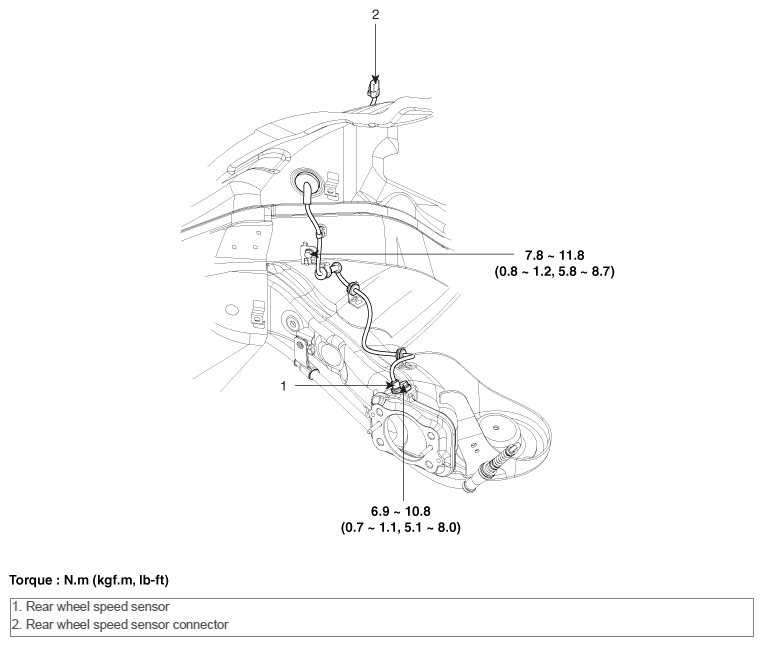

Fig 1: Rear Wheel Speed Sensor Components Location With Torque Specifications

G10605182

Courtesy of HYUNDAI MOTOR AMERICA
