Components And Components Location: Components

[General Type]

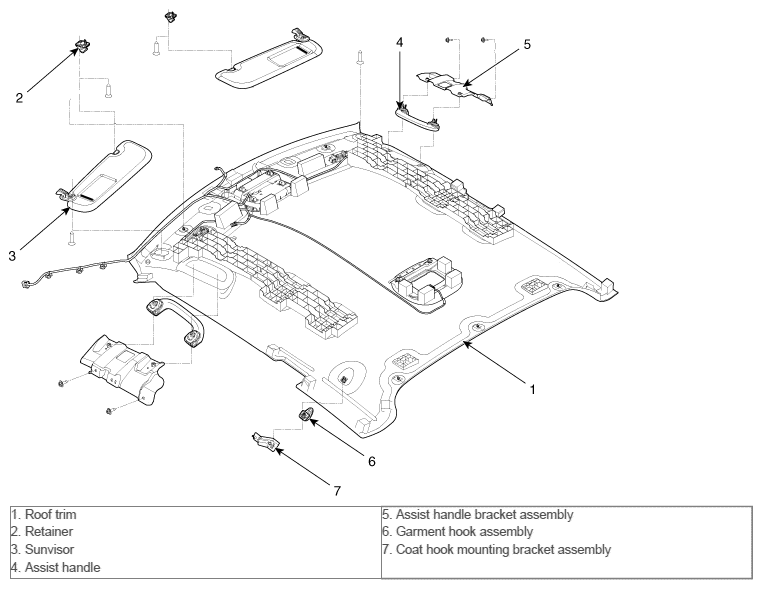

Fig 1: Roof Trim Replacement Components (General Type)
G10605453Courtesy of HYUNDAI MOTOR AMERICA


[Panoramaroof Type]

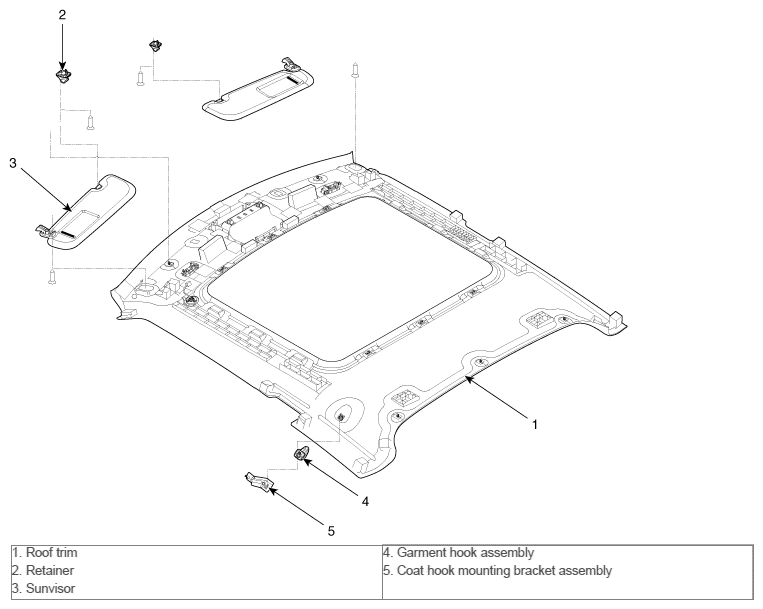

Fig 1: Roof Trim Replacement Components (Panoramaroof Type)
G10605454Courtesy of HYUNDAI MOTOR AMERICA
