Components and Components Location: Components

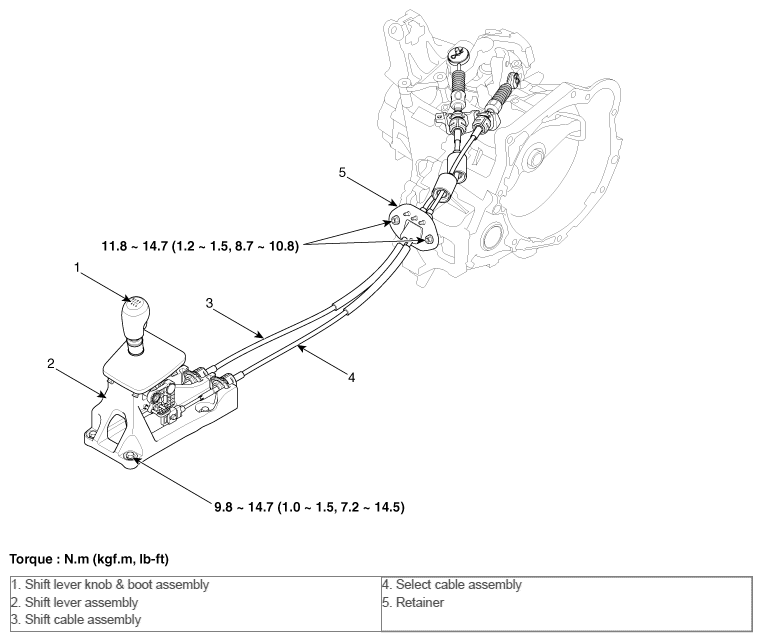

Fig 1: Shift Lever Replacement Components With Torque Specification

G10604728

Courtesy of HYUNDAI MOTOR AMERICA
