Home >> Hyundai >> 2016 >> Veloster Turbo R-Spec, Standard Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Manual Transaxle Control System - 1.6L T-GDI >> Control Cable >> Components and Components Location >> Components

Components and Components Location: Components

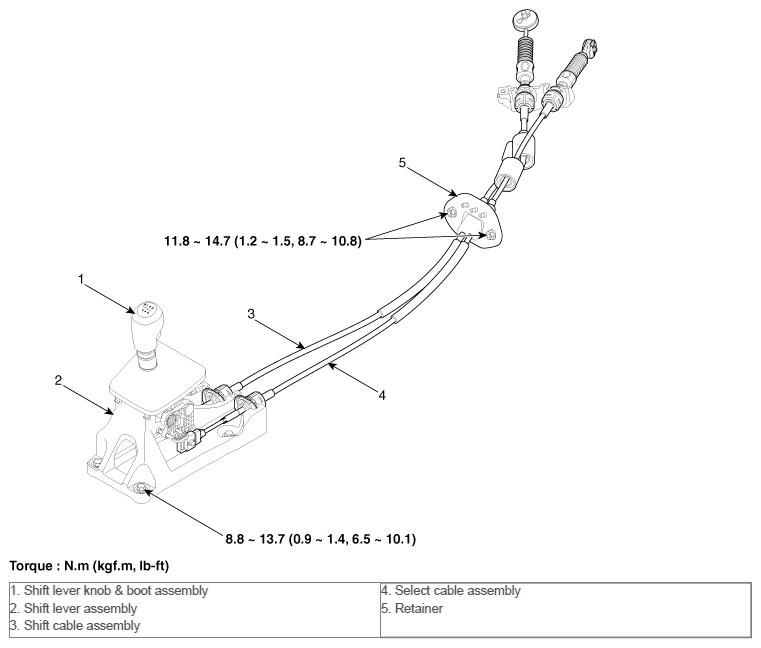

Fig 1: Control Cable Replacement Components With Torque Specification

G10604733

Courtesy of HYUNDAI MOTOR AMERICA
