Circuit Diagram

(M/T)

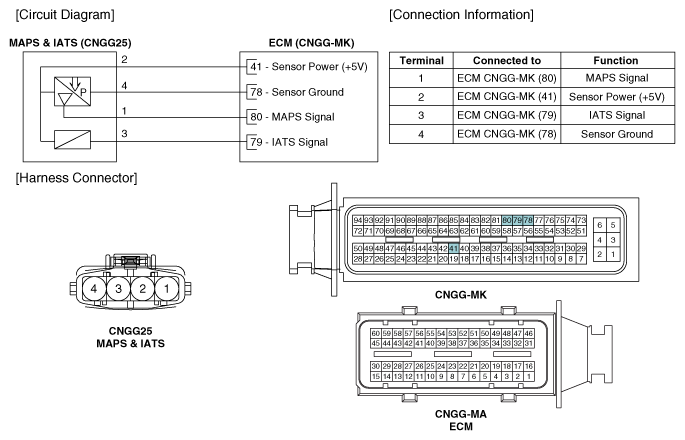

Fig 1: Intake Air Temperature Sensor Circuit Diagram (M/T) With Connector Views
G10604537Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

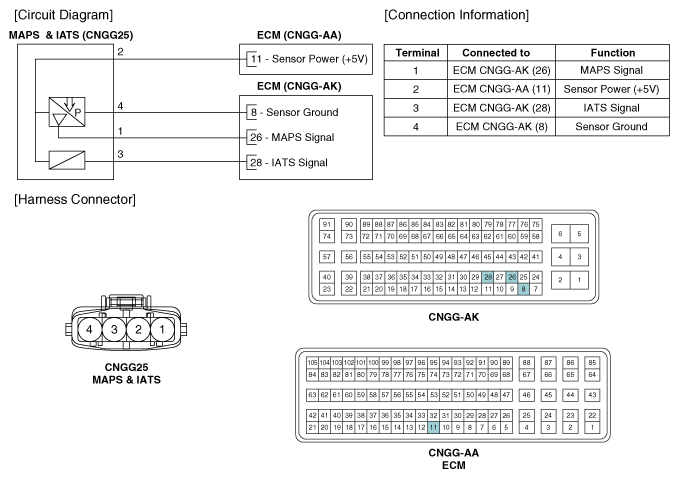

Fig 2: Intake Air Temperature Sensor Circuit Diagram (A/T) With Connector Views
G10604538Courtesy of HYUNDAI MOTOR AMERICA
