Circuit Diagram

(M/T)

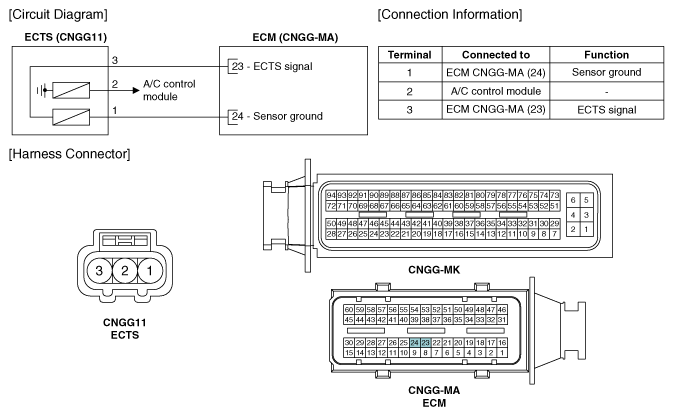

Fig 1: Engine Coolant Temperature Sensor Circuit Diagram (M/T) With Connector End Views
G10604548Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

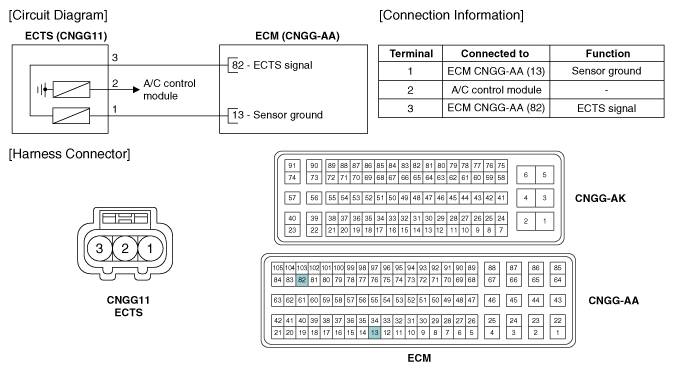

Fig 2: Engine Coolant Temperature Sensor Circuit Diagram (A/T) With Connector End Views
G10604549Courtesy of HYUNDAI MOTOR AMERICA
