Circuit Diagram

(M/T)

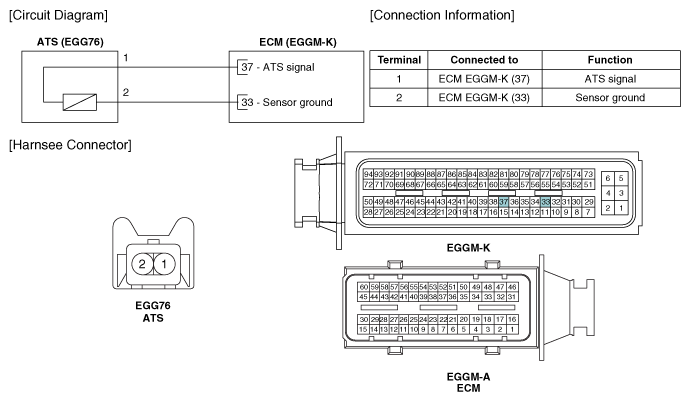

Fig 1: Ambient Temperature Sensor Circuit Diagram (M/T) With Connector End Views
G10604540Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

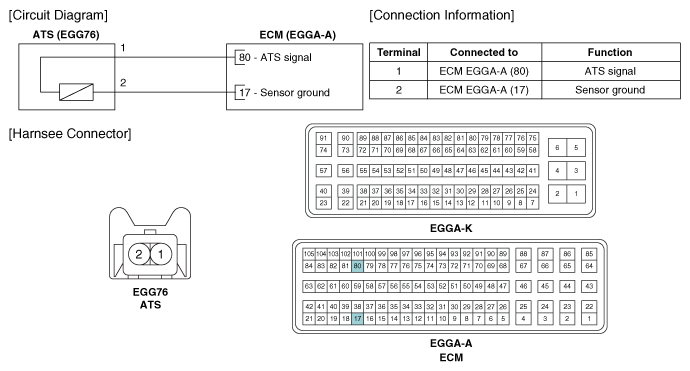

Fig 2: Ambient Temperature Sensor Circuit Diagram (A/T) With Connector End Views
G10604541Courtesy of HYUNDAI MOTOR AMERICA
