Components and Components Location: Components

WARNING: This page is about a different car, the 2015 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

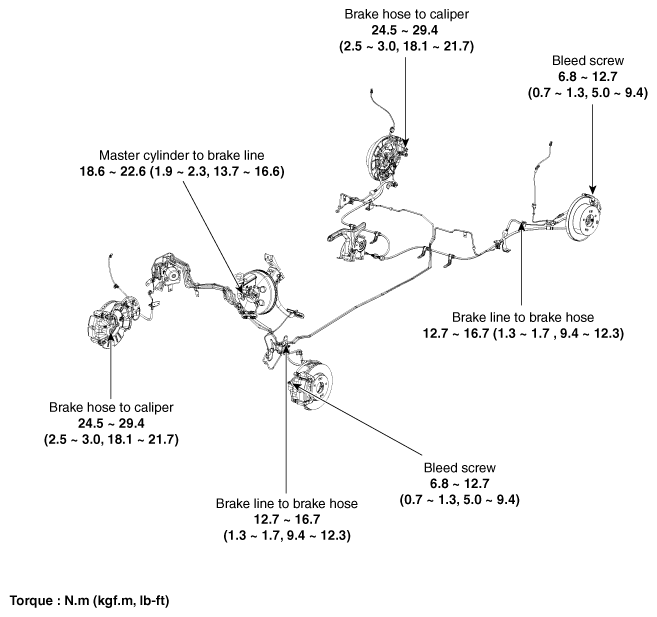

Fig 1: Brake Line Components Location With Torque Specifications
G10605081Courtesy of HYUNDAI MOTOR AMERICA
