Components and Components Location: Components

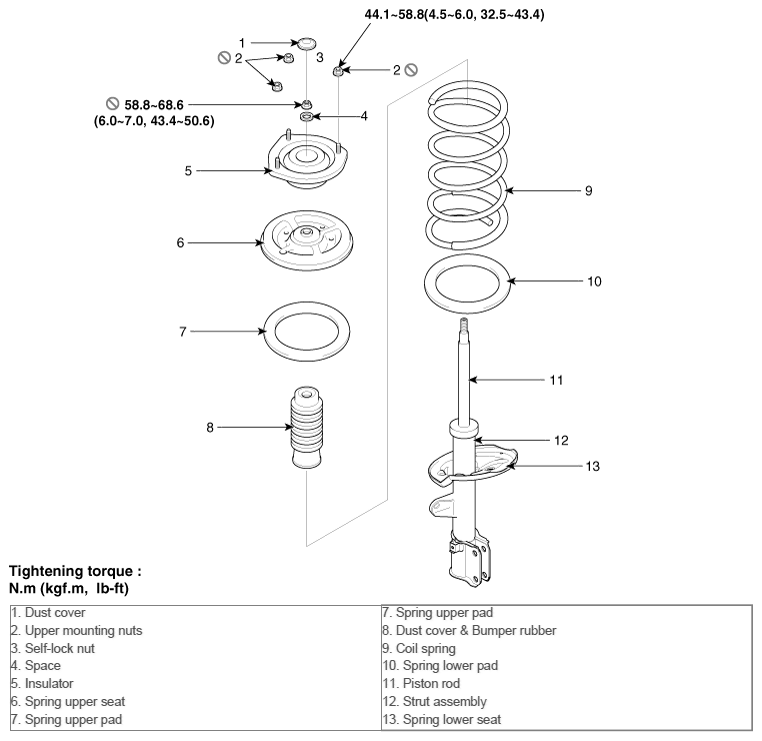

Fig 1: Front Strut Assembly Replacement Components With Torque Specifications
G10604809Courtesy of HYUNDAI MOTOR AMERICA
NOTE: * Tighten under unladen condition * Fix the strut rod end and tighten the nut
