Components (1)

WARNING: This page is about a different car, the 2015 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

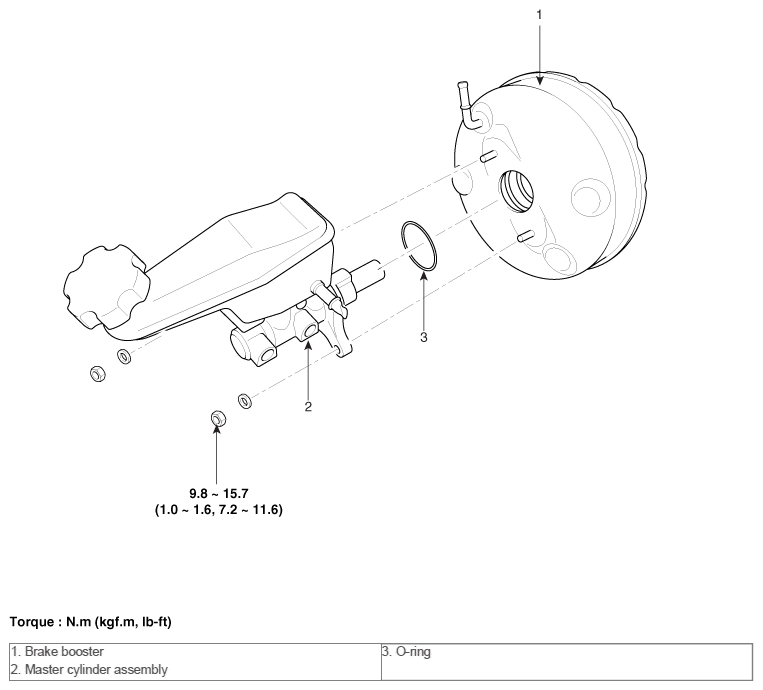

Fig 1: Brake Booster Components With Torque Specifications (1 Of 2)
G10605060Courtesy of HYUNDAI MOTOR AMERICA
