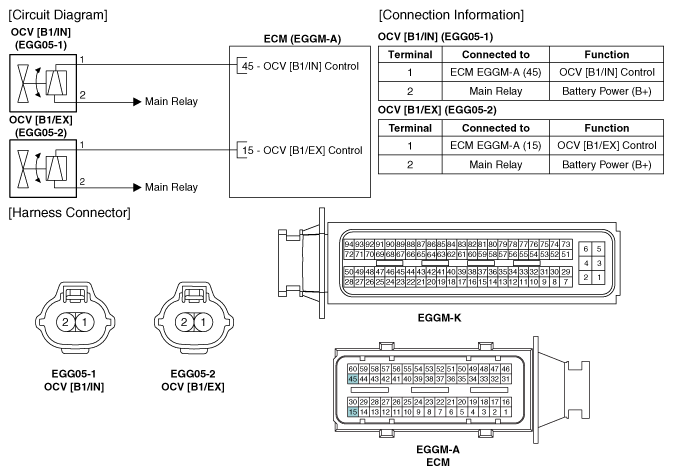

Home >> Hyundai >> 2016 >> Veloster Base, Standard Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L GDI >> CVVT Oil Control Valve (OCV) >> Schematic Diagrams >> Circuit Diagram
