Home >> Hyundai >> 2016 >> Veloster Base, Standard Trans >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System - 1.6L GDI >> Oil Pump >> Components and Components Location >> Components

Components and Components Location: Components

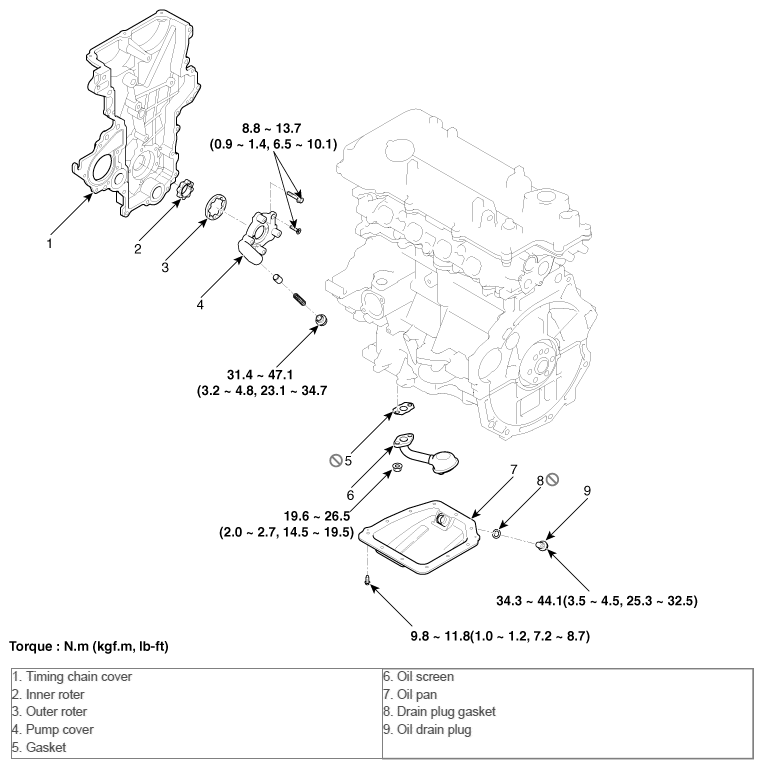

Fig 1: Oil Pump Replacement Components With Torque Specifications

G10607713

Courtesy of HYUNDAI MOTOR AMERICA
