Components and Components Location: Components

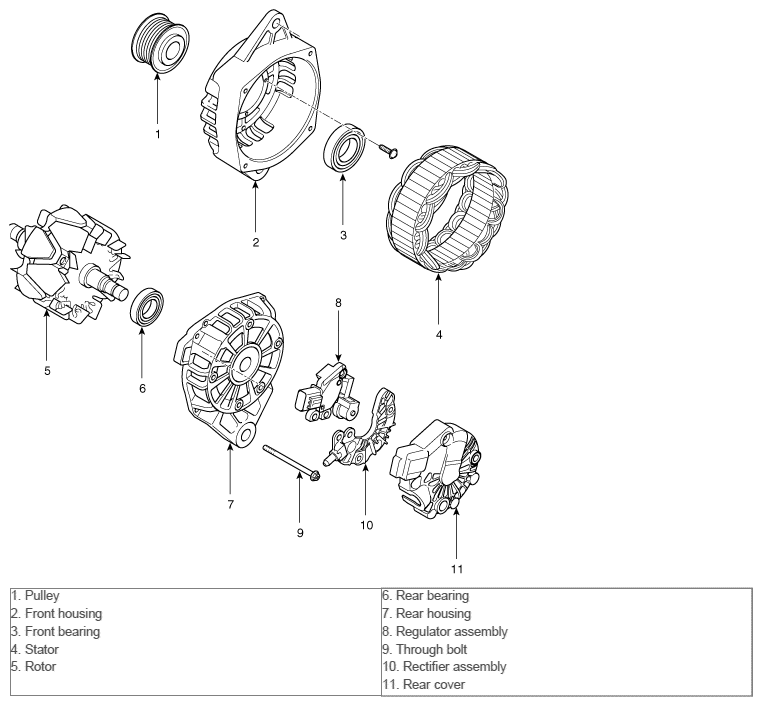

Fig 1: Alternator Replacement Components

G10607813

Courtesy of HYUNDAI MOTOR AMERICA
