Components and Components Location: Components

[RH]

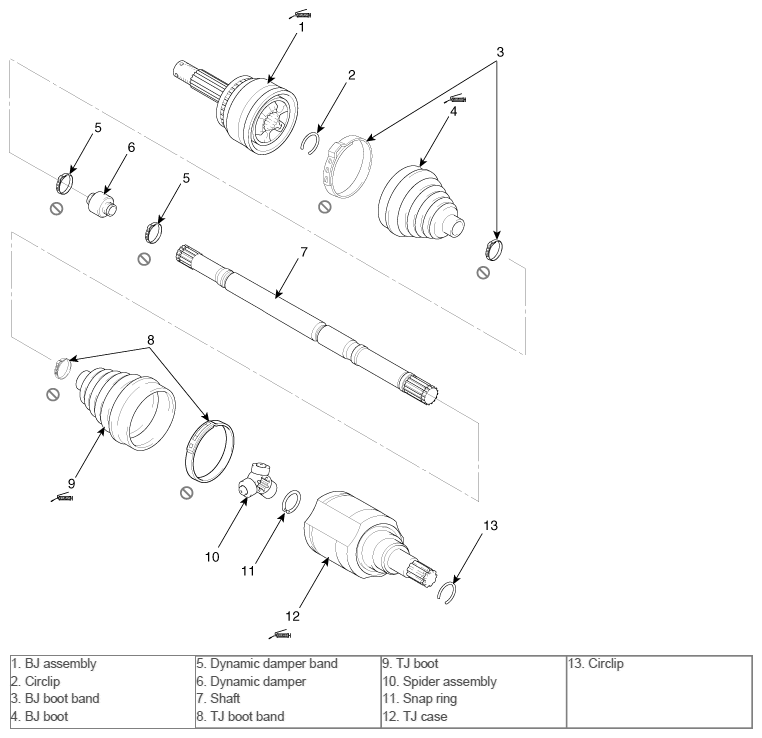

Fig 1: Front Driveshaft Replacement Components (RH) (1 Of 2)
G10604767Courtesy of HYUNDAI MOTOR AMERICA

[LH]

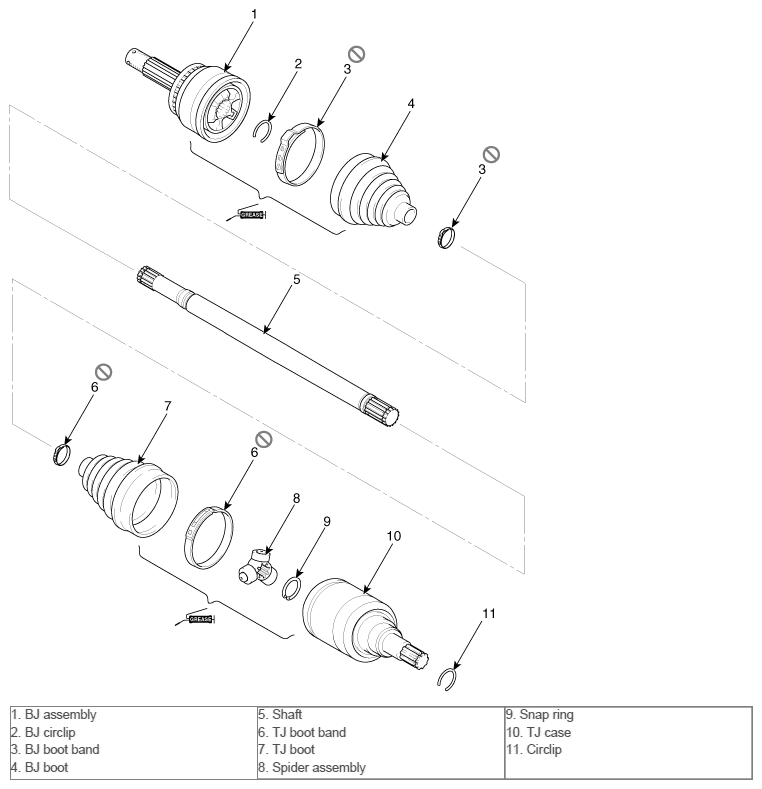

Fig 2: Front Driveshaft Replacement Components (LH) (2 Of 2)
G10604768Courtesy of HYUNDAI MOTOR AMERICA
