Power Outside Mirror Switch: Inspection

  1. Disconnect the power door mirror switch module connector from front door trim panel.
    Fig 1: Power Door Mirror Switch Module Connector End View
    G10605898Courtesy of HYUNDAI MOTOR AMERICA
  2. Check for the continuity between terminals of power door mirror switch according to the chart.

    [Power Mirror Switch]

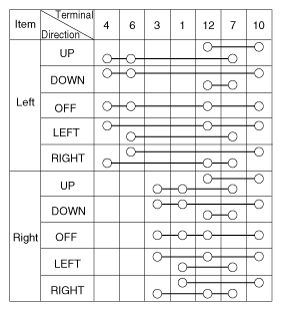

    Fig 2: Power Mirror Switch Terminal Continuity Chart
    G10605899Courtesy of HYUNDAI MOTOR AMERICA
