Components And Components Location: Components

[RH]

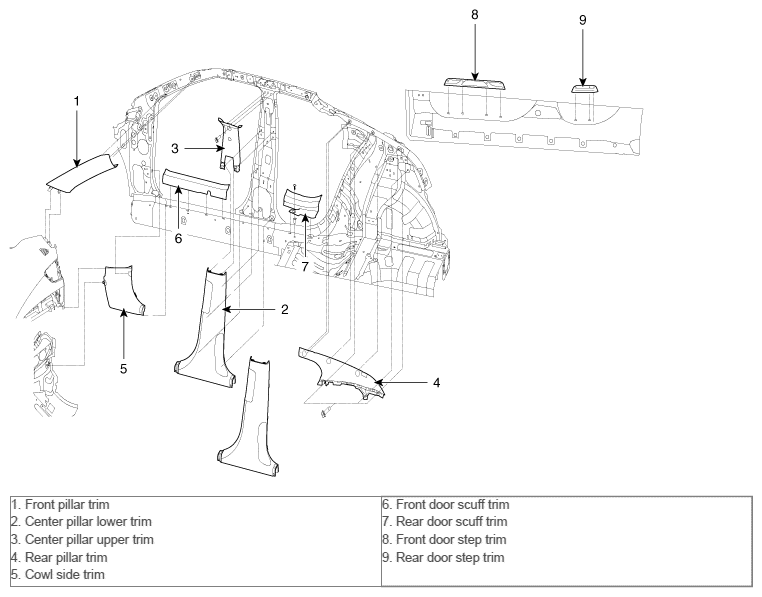

Fig 1: Interior Trim (RH) Replacement Components (1 Of 2)
G10605464Courtesy of HYUNDAI MOTOR AMERICA

[LH]

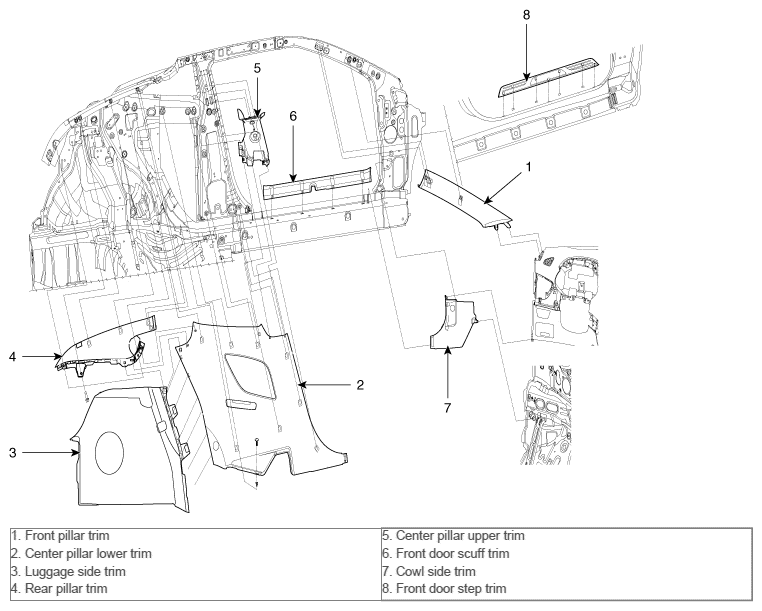

Fig 2: Interior Trim (LH) Replacement Components (2 Of 2)
G10605465Courtesy of HYUNDAI MOTOR AMERICA
